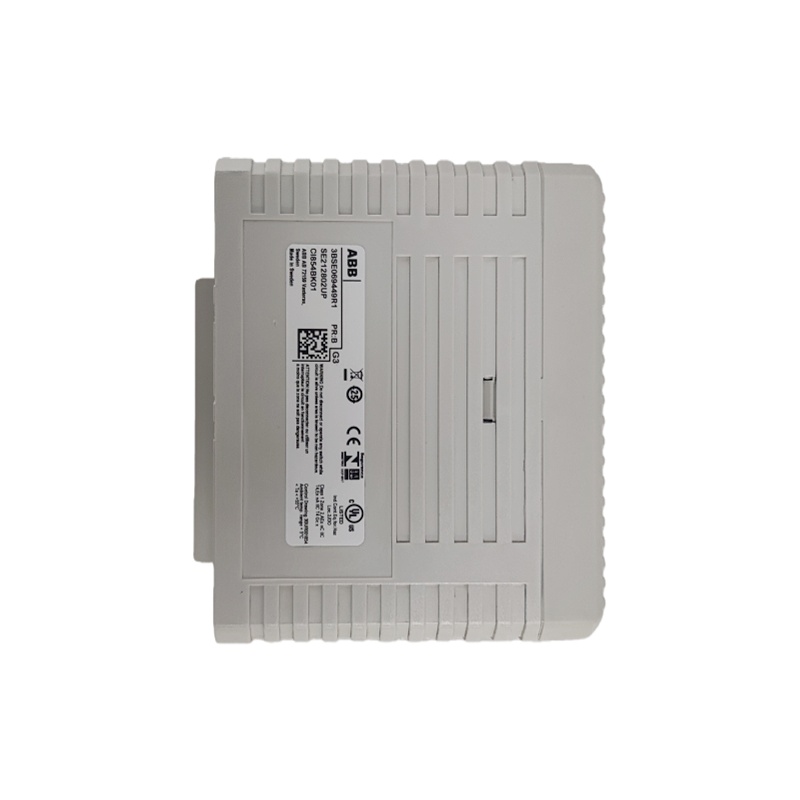

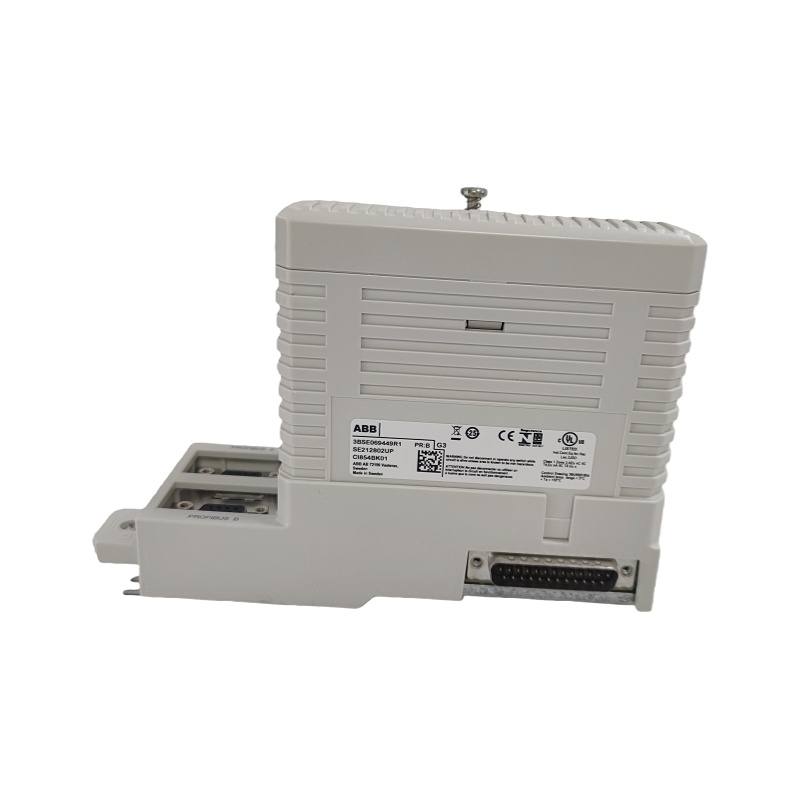

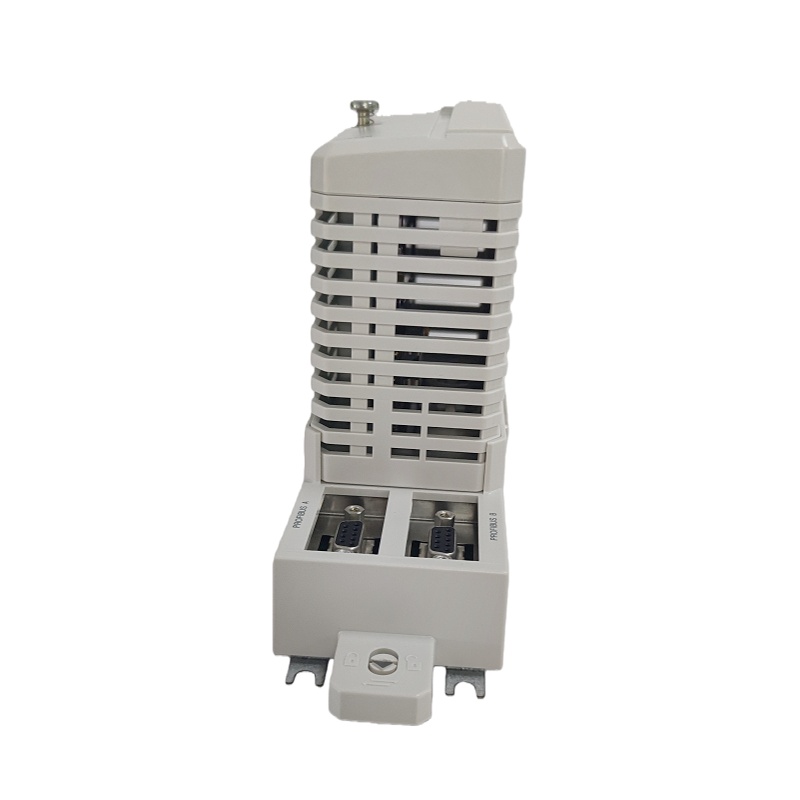

ABB CI854BK01
1. Overview
The ABB CI854BK01 is a high-performance communication interface module provided by ABB for industrial automation systems, specifically designed to enable reliable data exchange and control between field devices and control systems. This module supports a variety of fieldbus protocols (such as PROFIBUS‑DP, Modbus, DeviceNet, etc.), can be directly mounted on DIN rails, and is compatible with platforms like ABB System 800xA and Compact Control Builder.
2. Key Specifications
- Operating Voltage: 24 V DC
- Operating Temperature: -20 ℃ to +60 ℃
- Communication Protocols: PROFIBUS‑DP, Modbus‑RTU, EtherNet/IP, DeviceNet, etc.
- Maximum Number of Devices: 125 (single bus)
- Communication Speed: 9.6 kbps to 12 Mbps
- Dimensions: Approximately 140 mm × 100 mm × 40 mm
- Weight: 0.5 kg to 1.5 kg
3. Product Features
- High Reliability: Complies with ABB’s redundant design standards and can work in conjunction with master redundancy and CPU redundancy.
- Multi-Protocol Compatibility: Supports multiple fieldbuses with a single configuration, meeting the access requirements of different field devices.
- Flexible Configuration: Offers a rich parameter setting interface and supports various communication modes including master-slave and broadcast.
- Diagnostic Function: Reports network status, errors, and fault information in real time, facilitating maintenance and fault location.
- Modular Design: DIN rail mounting, used with the TPB54 backplane, enabling easy system expansion.
4. Structure and Components
- Communication Interface Unit (CI854BK01): Core communication chips and ports.
- Backplane (TPB54): Provides power supply, heat dissipation, and mechanical support.
- Connectors: Built-in terminals for PROFIBUS‑DP termination and power access.
- Indicator Lights/Diagnostic Ports: Display communication status and fault information.
5. Application Fields
- Process Automation: Fieldbus connection for continuous production processes in petrochemical, chemical, pharmaceutical, and other industries.
- Power Systems: Access of field devices for distribution automation and substation monitoring.
- Mechanical Manufacturing: I/O communication for CNC machine tools and robot systems.
- Building and Facility Management: Centralized monitoring of HVAC and security systems.
6. Installation and Maintenance
Installation
Insert the module directly into the DIN rail and fix it with the matching backplane; ensure that terminal resistors are added to both ends of the PROFIBUS‑DP port.
Wiring
Perform wiring in accordance with 24 V DC power supply and fieldbus specifications, and check polarity and grounding.
Configuration
Set parameters (including device address, communication speed, master/slave mode, etc.) via ABB System 800xA or Compact Control Builder software.
Debugging
Confirm network connectivity using diagnostic information and check the status of indicator lights; use diagnostic tools provided by ABB for fault location if necessary.
Maintenance
Regularly inspect the tightness of connectors, terminal corrosion, and cleanliness of heat sinks; back up the current configuration before software upgrades.
————————————————————————————————-
