Communication Protocol:Supports Profinet, EtherCAT, CANopen

Data Transfer Rate:Up to 1 Mbps

Power Consumption:5W

Operating Temperature Range:-20°C to +60°C

Dimensions (mm):140 x 110 x 85

Connector Type:Standard industrial connector

Load Current:Max. 10A

Relay Contacts:2 SPST

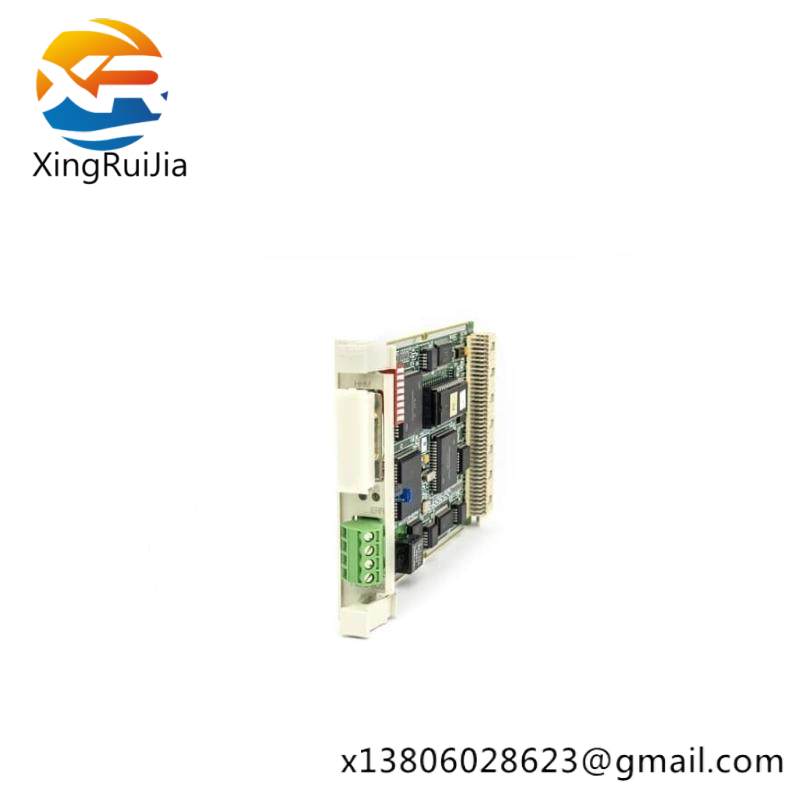

    The ABB CI560 TRIO Interface Submodule is a high-performance, modular component designed to enhance the connectivity and efficiency of industrial automation systems. This submodule is specifically engineered for compatibility with leading fieldbus protocols including Profibus-DP, DeviceNet, and CANopen, ensuring seamless integration across diverse automation environments.

    With a communication speed of up to 12 Mbps, the CI560 TRIO Interface Submodule offers lightning-fast data transfer rates, crucial for real-time control applications where speed and accuracy are paramount. Its robust power supply of 24V DC ensures reliable operation under varying industrial conditions.

    Featuring 16 channels, this submodule provides ample connectivity options for various input and output devices, making it a versatile choice for system expansion and customization. Its compact size of 125mm x 105mm x 45mm and lightweight design (0.3kg) make it ideal for space-constrained applications without compromising on performance.

    Operating within a temperature range of -20°C to +70°C, the ABB CI560 TRIO Interface Submodule is built to withstand the harsh conditions typical of industrial environments. This makes it a reliable choice for applications in extreme temperatures, ensuring continuous operation and minimal downtime.

    The submodule’s modular design facilitates easy installation and maintenance, allowing for quick replacement or upgrade without disrupting ongoing operations. Additionally, its compatibility with industry-standard protocols ensures compatibility with a wide array of existing and future automation systems, promoting long-term investment protection.
