Type:IGBT Module

Model Number:BGAD-22C, FS300R120E4

Maximum Voltage:1200V

Maximum Current:300A

Operating Frequency:up to 25kHz

Thermal Design:Enhanced heat dissipation for prolonged reliability

Protection Features:Overcurrent, Overvoltage, Thermal Protection

Dimensions (WxHxD):100mm x 100mm x 50mm

Weight:0.7kg

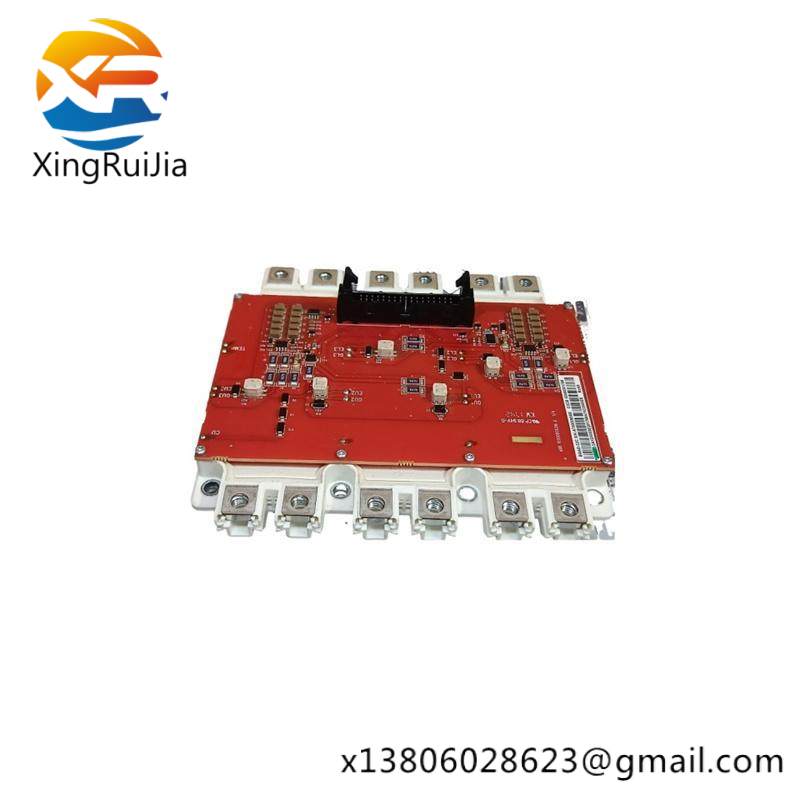

    The ABB BGAD-22C, FS300R120E4 IGBT Kit is engineered to deliver unparalleled performance in heavy-duty industrial settings. This power electronics module boasts an advanced thermal design, ensuring reliable operation under extreme conditions.

    With its robust protection features, including overcurrent, overvoltage, and thermal safeguards, this IGBT kit ensures safety and minimizes downtime in manufacturing processes.

    Featuring a maximum voltage of 1200V and a maximum current capacity of 300A, it is perfectly suited for applications requiring high-power density and efficiency.

    Its compact size (100mm x 100mm x 50mm) and lightweight design (0.7kg) make it easy to integrate into existing systems without compromising on performance or space.

    Designed for seamless integration with ABB‘s comprehensive range of automation solutions, this IGBT kit enhances overall system performance, making it an ideal choice for industries looking to optimize their energy usage and boost productivity.
