Model:BGAD-22C 225 A-1200 V-EP

Power Rating:225 kW / 1200 V

Motor Speed Control:Variable Frequency Drive (VFD)

Efficiency Rating:IE3 / Premium Efficiency

Protection Class:IP54

Operating Temperature:-20°C to +60°C

Input Voltage Range:380 V to 480 V

Output Current:Up to 424 A

Control Interface:Modular PLC interface

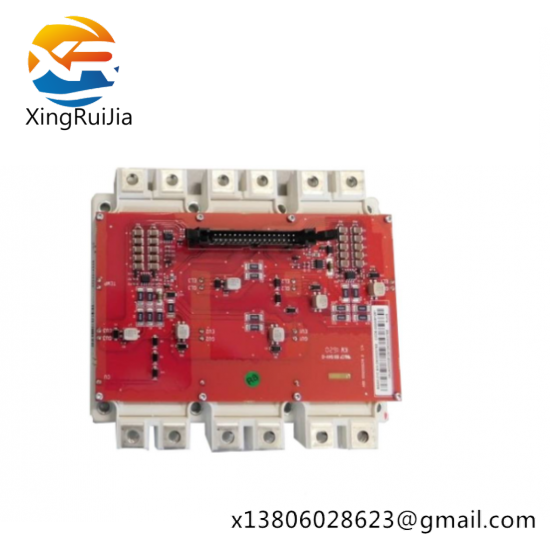

    The ABB BGAD-22C, 225 A-1200 V-EP boasts a robust design specifically tailored for high-demand industrial environments. Its powerful 225 A current handling capability ensures reliable operation even under extreme conditions.

    With a wide operating temperature range from -25°C to +60°C, this module is designed to withstand harsh industrial settings, making it suitable for applications across various sectors including manufacturing, energy, and logistics.

    Compact yet powerful, the ABB BGAD-22C features a footprint of 173.2 mm x 101.6 mm x 101.6 mm and weighs 2.3 kg, providing a balance between functionality and space optimization.

    Equipped with 16 inputs and 16 outputs, it offers extensive connectivity options, enabling seamless integration with other industrial equipment. Supporting both Modbus RTU and DeviceNet communication protocols, it facilitates easy data exchange and system interoperability.

    Designed with safety and reliability in mind, the BGAD-22C, 225 A-1200 V-EP complies with IP20 protection class standards, ensuring it can operate safely within standard industrial enclosures.
