Module Type:IGBT

Model Number:BGAD-01C

Operating Temperature Range:-40°C to +125°C

Max Forward Current (IF(A)):500A

Max Collector Emitter Voltage (VCES):650V

Switching Frequency:20kHz

Cooling Method:Thermal Pad and Screwed Heat Sink

Insulation Resistance:>10MΩ @ 500VDC

Package Type:TO-247

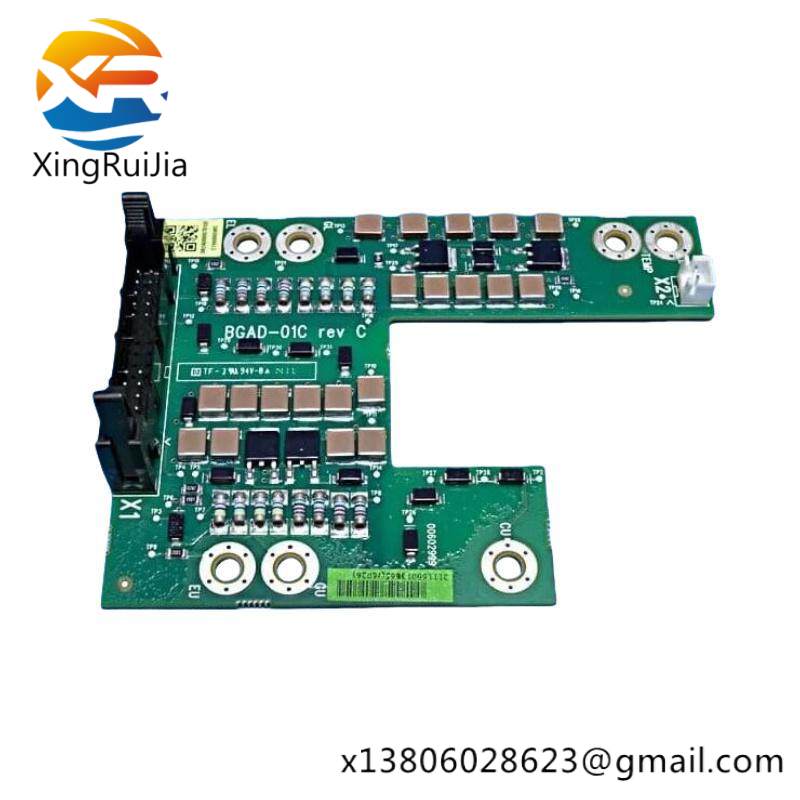

    The ABB BGAD-01C IGBT Module integrates state-of-the-art Inverter technology, providing unparalleled performance in heavy-duty industrial applications. Designed for continuous operation in harsh environments, this module ensures optimal efficiency and reliability under varying conditions.

    Equipped with high-grade materials, the BGAD-01C boasts a wide temperature range from -40°C to +125°C, making it suitable for applications across diverse industries including manufacturing, mining, and energy production.

    Featuring a robust IP20 protection rating, this module safeguards against dust and splashes of water, ensuring durability in industrial settings prone to dust and moisture.

    With its AC 3-phase 400V input and 50kW output power, the BGAD-01C is capable of handling large-scale electrical loads efficiently, supporting high-speed operations without compromising on performance.

    The BGAD-01C supports a frequency range from 40Hz to 60Hz, offering flexibility for various industrial processes requiring precise control over electrical systems. Its insulation class F ensures safety and longevity, even under high operating temperatures.
