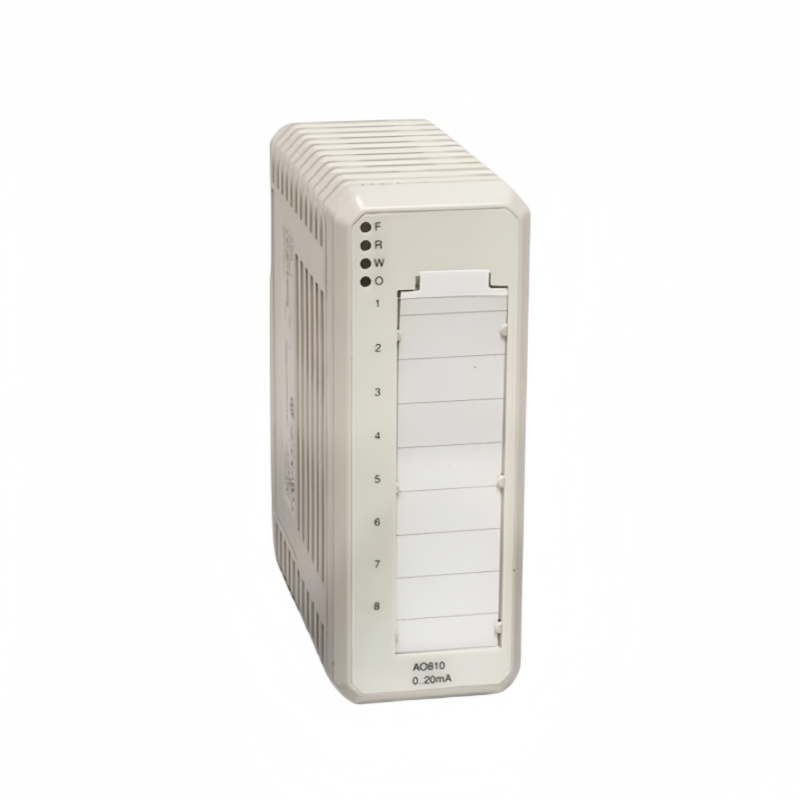

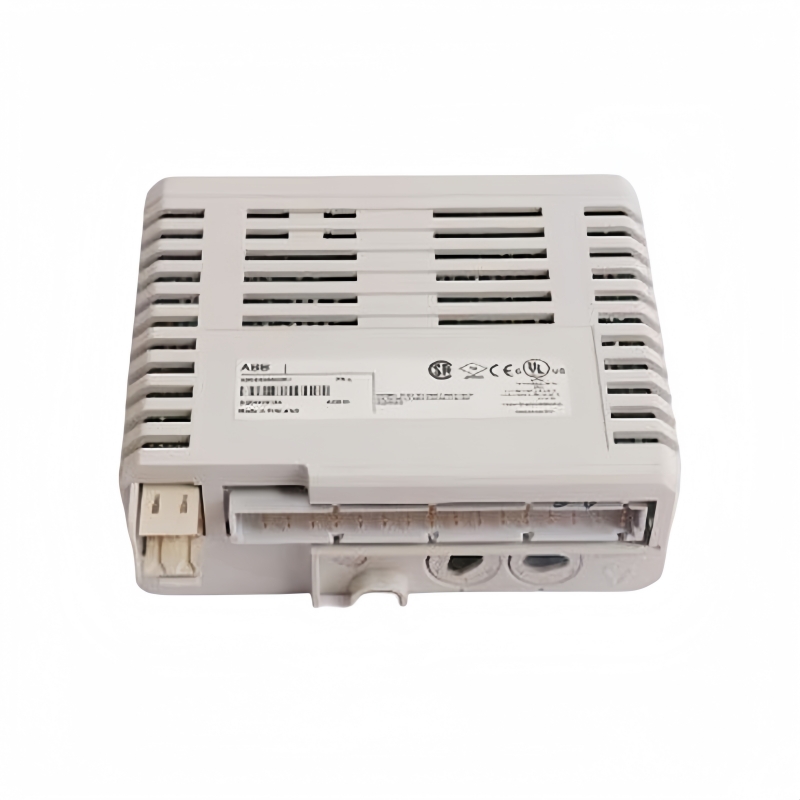

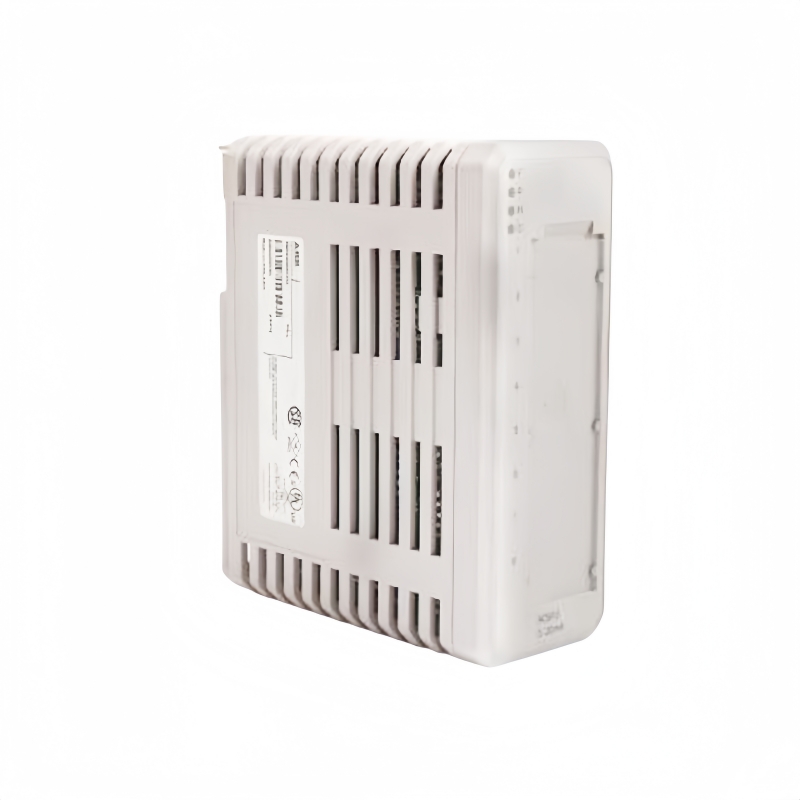

ABB AO810

Overview

The ABB AO810 is a high-precision, modular analog output module belonging to ABB’s 800xA series control systems. It is mainly used to convert digital signals into analog signals for controlling actuators (such as valves, motors, etc.). This module features 8 unipolar analog output channels, supports current and voltage outputs, and is suitable for a wide range of industrial automation applications. Parameters Output type: Current (0-20 mA, 4-20 mA) or voltage (0-10 V, ±10 V). Number of channels: 8 unipolar analog output channels. Accuracy: ±0.1% of full scale. Resolution: 16 bits. Update time: 20ms (or up to 100µs depending on the model). Operating voltage: 24V DC. Operating temperature: -40℃ to +70℃. Protection class: IP20. Power consumption: 3.5W at 24V DC. Dimensions: 119mm x 45mm x 102mm. Weight: Approximately 0.2kg.

Product Features

High precision and high resolution: The AO810 module provides high-precision analog output to ensure the accuracy of the control system. Modular design: The modular design makes installation and maintenance more convenient, and also facilitates system expansion and upgrading. Versatility: Supports multiple output signal types, such as current and voltage, and can be customized by configuring parameters. Isolation design: Input and output isolation effectively prevents interference and improves system reliability. Indicator lights: Equipped with indicator lights for users to monitor the output status easily. Self-diagnostic function: The module has a self-diagnostic function that can detect and report faults, enhancing system stability and safety.

Structure and Composition The ABB AO810 module consists of several components, including:

Main control chip: Responsible for processing digital signals and converting them into analog signals. Output circuit: Outputs analog signals to external devices. Power module: Provides a stable 24V DC power supply for the module. Interface circuit: Used for communication with the control system and other modules. Indicator lights: Display the module’s working status and fault information.

Application Fields The ABB AO810 module is widely used in the following fields:

Industrial automation: For controlling various industrial equipment such as valves and motors. Process control: In industries such as chemicals, petroleum, and natural gas, it is used to control parameters like temperature, pressure, and flow. Power systems: For automation control in power plants and substations. Food and beverage industry: For automation control of food and beverage production lines. Water treatment: For automation control of water treatment and wastewater treatment systems. Metallurgical industry: For automation control in metallurgical processes. Installation and Maintenance Installation: The AO810 module adopts a slot mounting method, which is simple to install and convenient for maintenance. Configuration: The module can be configured via software to set parameters such as output range, output scaling, output fault value, and output filter. Maintenance: The module has good anti-interference capability and can work stably in various complex industrial environments. Regularly check the module’s connections and power status to ensure its normal operation.
