Input Voltage Range:120V to 277V AC

Output Resolution:1/100th of a Volt

Accuracy Rating:+/- 0.2% of reading

Operating Temperature Range:-20°C to 60°C

Mounting Type:Panel-Mounted

Connection Type:Terminal Block

Material:Aluminum Housing

Operating Frequency:47Hz to 63Hz

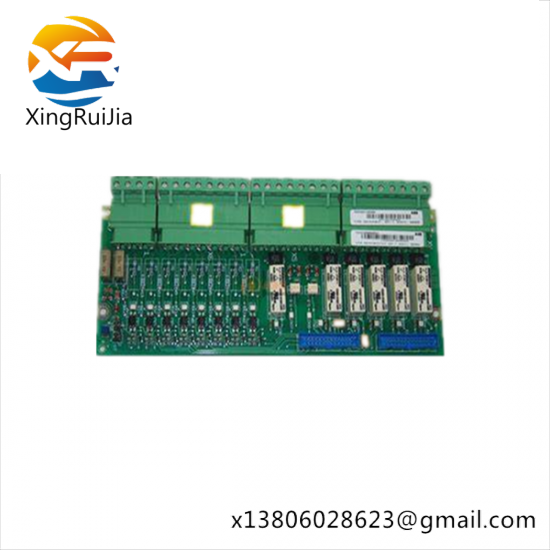

    The ABB AC-UCM-1C Voltage Measurement Board is a critical component for any industrial automation system requiring precise voltage monitoring. Its compact design ensures it fits seamlessly into tight spaces without compromising on functionality or performance.

    Featuring a wide operating voltage range of 12-48V DC, this board is highly versatile and can withstand harsh industrial environments. With an impressive measurement resolution of 0.01V, it delivers exceptional accuracy, ensuring reliable data collection.

    Operational within a temperature range from -20°C to +70°C, this board is designed to perform reliably in extreme conditions. Coupled with its low power consumption of just 1W, it is energy-efficient and ideal for continuous operation.

    Equipped with an RS-485 communication interface, the ABB AC-UCM-1C is easily integrated into existing systems for seamless data exchange. Its IP65 environmental compatibility ensures it remains functional even in dusty or wet environments, making it suitable for outdoor or industrial use.

    Comprehensive safety and quality certifications, including CE, UL, EN61000-6-2, and EN61000-6-4, guarantee the board meets stringent international standards. This not only enhances safety but also simplifies regulatory compliance for global deployment.
