Operating Voltage:12 to 48V DC

Isolation Voltage:2500V AC

Input Range:-10V to +10V

Output Range:0V to 10V

Communication Protocol:Modbus RTU

Power Consumption:Max. 500mW

Temperature Range:-25°C to +60°C

Dimensions:86mm x 63mm x 34mm

Weight:0.2kg

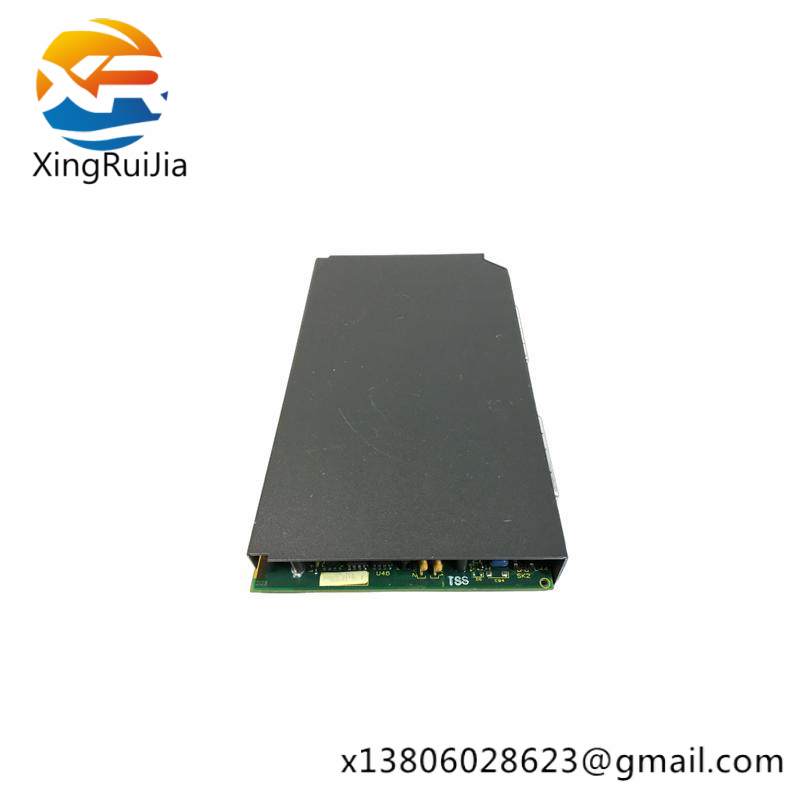

    The ABB AB 1771-NBSC Isolated Analog Module is specifically engineered for applications requiring precise analog signal processing and transmission in industrial automation setups. This module ensures stable operation under various environmental conditions, thanks to its robust design and high isolation rating.

    Featuring a compact form factor and low power consumption, it seamlessly integrates into control systems without overloading circuitry. The high-resolution 16-bit ADC provides accurate data acquisition, essential for process control and monitoring applications.

    With support for Modbus RTU communication protocol, the AB 1771-NBSC facilitates easy integration with existing SCADA systems and other automation software, enhancing system interoperability and efficiency.

    This module supports a wide range of input signals from -10V to +10V, making it suitable for diverse measurement tasks. Its isolated analog output ensures interference-free signal transmission, crucial for maintaining the integrity of control loops.

    Designed with reliability and ease of use in mind, the ABB AB 1771-NBSC Isolated Analog Module comes equipped with protection against overvoltage and ESD events, safeguarding against common industrial risks and ensuring continuous operation.
