Operating Voltage (V):1842

Thermal Rating (kW):High

Current Rating (A):Adjustable

Package Type:Standard Enclosure

Operating Temperature Range (-°C to +°C):-40°C to +70°C

Cooling Method:Air Cooled

Response Time (ms):Substantially Low

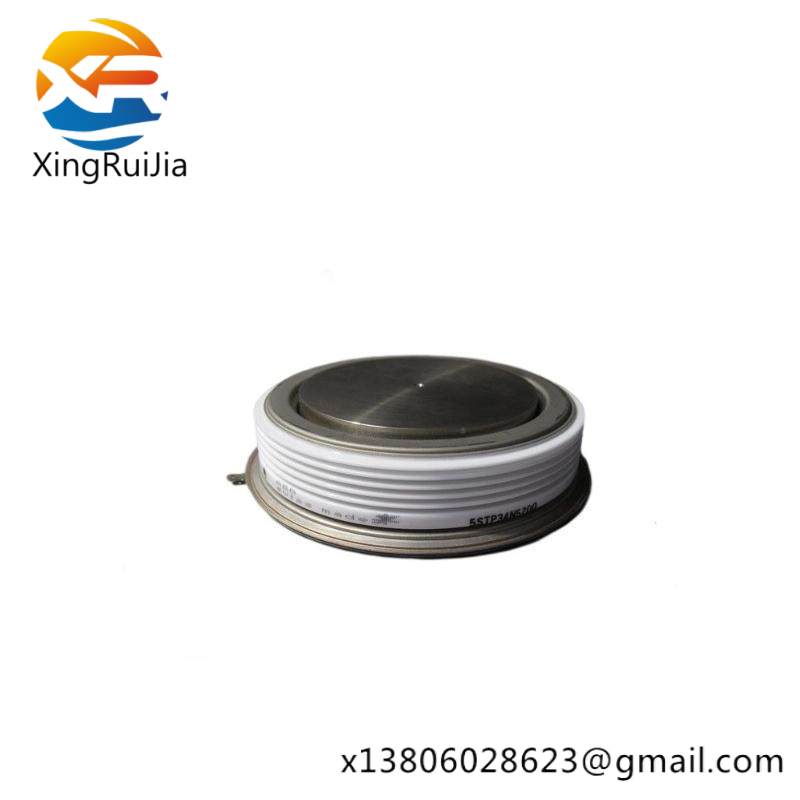

    The ABB 5STP1842H0001 SCR Thyristor is engineered to deliver unparalleled performance in high-demand industrial settings. Its robust design ensures seamless integration into complex power management systems, facilitating precise control over heavy electrical loads.

    Featuring an impressive rated current of 2400A and a maximum voltage rating of 690V AC, this solid state relay is capable of handling significant power demands without compromising on safety or efficiency. Its ultra-fast switching speed of less than 1μs enables swift response times, crucial for applications requiring immediate control adjustments.

    Operational within a wide temperature range from -40°C to +70°C, the ABB 5STP1842H0001 is designed to withstand harsh environmental conditions, ensuring reliable performance throughout its service life. This makes it ideal for outdoor and industrial environments where extreme temperatures are common.

    Withstanding insulation resistance tests of ≥1000MΩ and a dielectric strength of 1400VAC for 1 minute, this SCR Thyristor guarantees exceptional electrical isolation and safety, protecting against potential failures and ensuring system integrity.

    In terms of maintenance and installation, the ABB 5STP1842H0001 is compliant with IP20 environmental protection class, providing basic dust protection for indoor use. Its compact size and standard mounting holes facilitate easy integration into existing control panels and systems.
