Operating Voltage:DC 1000V

Current Rating:6545 Amps

Switching Frequency:20kHz

Insulation Resistance:≥10MΩ

Temperature Range:-40°C to +175°C

Cooling Method:Thermal Pad Cooling

Material:Aluminum Alloy Housing

Certification:CE, UL, IEC

Dimensions (WxHxD):150mm x 200mm x 100mm

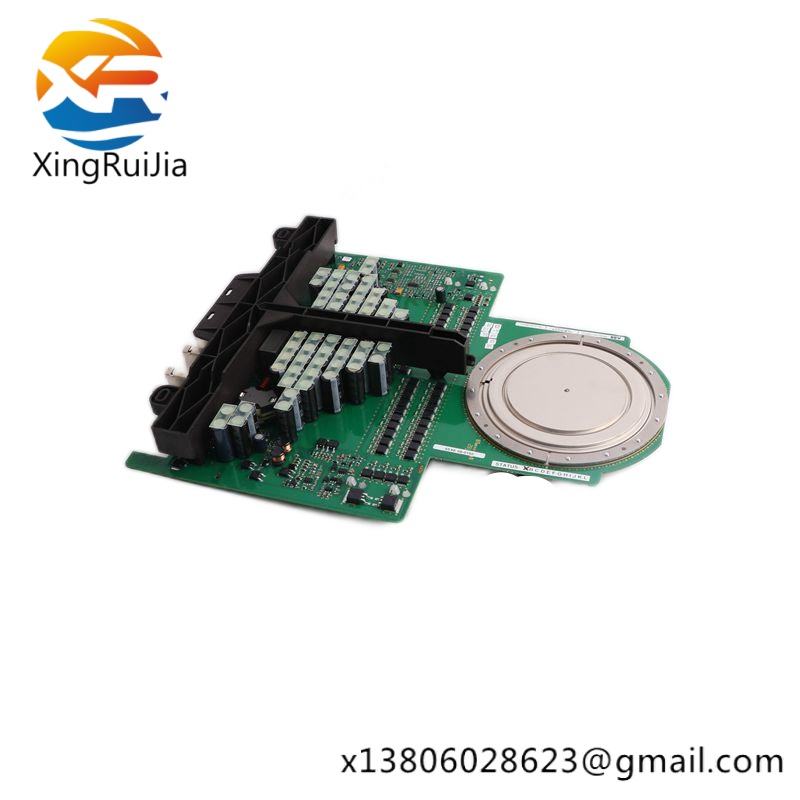

    The ABB 5SHY6545L0001 AC10272001R0101 | 5SXE10-0181 IGBT module is designed with advanced semiconductor technology, offering unparalleled efficiency and reliability for power-intensive industrial processes.

    Featuring a compact design, this module is optimized for space-constrained environments without compromising on performance. Its robust construction withstands harsh industrial conditions, ensuring long-term operation without degradation.

    With its high switching frequency, this IGBT module enables fast and precise control, ideal for applications requiring rapid response times and high accuracy. It supports a wide range of operating temperatures, making it suitable for diverse industrial settings from freezing cold to scorching hot climates.

    The module includes state-of-the-art insulation features, ensuring reliable electrical isolation and preventing unexpected failures. This not only enhances safety but also extends the lifespan of the system.

    Certified by CE, UL, and ISO 9001, the ABB 5SHY6545L0001 AC10272001R0101 | 5SXE10-0181 IGBT module meets stringent international standards, providing peace of mind for users seeking high-quality, reliable components for their industrial automation projects.
