Operating Voltage:35kV

Current Rating:Up to 2000A

Switching Frequency:Up to 10kHz

Temperature Range:-40°C to +125°C

Insulation Class:F (155°C)

Dimensions:300mm x 250mm x 200mm

Weight:35kg

Cooling Method:Air-cooled

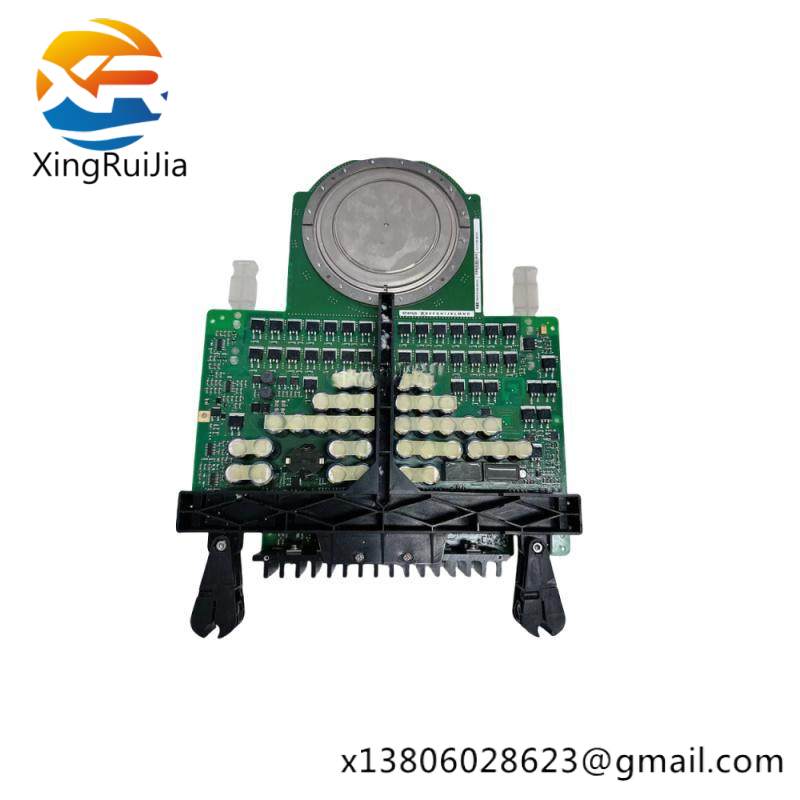

    Introducing the ABB 5SHY3545L0010 IGCT Module, a powerhouse in industrial control systems, engineered for exceptional performance and reliability under extreme conditions. This module is specifically designed for applications requiring robust power handling capabilities, making it an indispensable component in the most demanding environments.

    Featuring an operating voltage of up to 35kV and a current rating capable of reaching 2000A, this IGCT Module is equipped to handle significant power demands with ease. With a switching frequency of up to 10kHz, it ensures efficient and rapid operation, enhancing system responsiveness and overall efficiency.

    Engineered to withstand temperatures ranging from -40°C to +125°C, this module operates flawlessly across various geographical and environmental conditions. Its insulation class F (155°C) guarantees superior thermal management and extended operational life.

    Compact yet powerful, the 5SHY3545L0010 measures 300mm x 250mm x 200mm, offering a streamlined design that optimizes space and integrates seamlessly into existing systems. Weighing in at 35kg, it maintains a balance between portability and stability, ensuring easy installation and maintenance.

    Equipped with an air-cooling system, the module ensures continuous operation without the need for additional cooling solutions, reducing maintenance costs and downtime. This feature is particularly advantageous in industrial settings where operational continuity is paramount.
