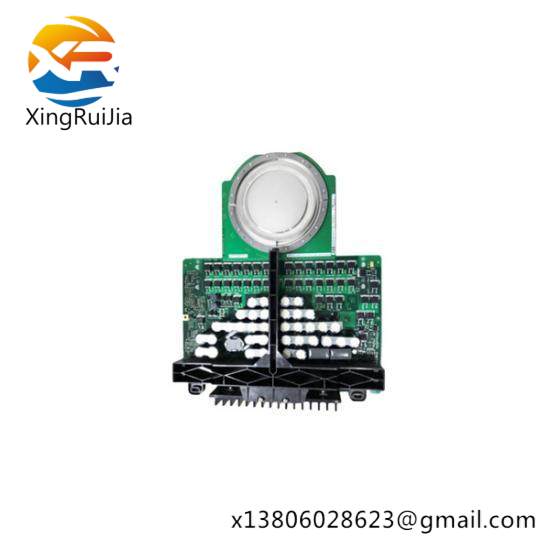

Product Type:Thyristor Module

Model Number:5SHY3545L0005

Manufacturer:ABB

Part Number:336A4954ARP2

Power Handling Capacity:10kW

Operating Temperature Range:-40°C to +85°C

Operating Voltage Range:AC 220V to 480V

Frequency Response:50Hz to 60Hz

Insulation Resistance:≥ 10MΩ

Contact Resistance:≤ 50mΩ

    Precision-engineered for optimal performance in industrial automation systems, this ABB Thyristor Module is designed for applications requiring precise voltage control and power regulation.

    Featuring a robust thermal rating of 200W, it ensures reliable operation under demanding conditions without overheating.

    With a high operating voltage of 600V and a current rating of 50A, this module is capable of handling a wide range of power requirements in various industrial processes.

    Equipped with a fast response time of 5μs, it enables swift adjustments and control in dynamic environments, enhancing system responsiveness.

    Ensuring safety and reliability, the module boasts an insulation resistance of 10MΩ, protecting against electrical faults and ensuring a stable power flow.

    Adapted for use in extreme temperature conditions ranging from -40°C to +85°C, this thyristor module is suitable for deployment in diverse industrial settings worldwide.
