Operating Voltage:DC 24 V

Output Frequency:10 kHz

Communication Interface:RS-485 Modbus

Power Consumption:Max. 2 W

Operating Temperature Range:-20°C to +60°C

Storage Temperature Range:-40°C to +85°C

Dimensions (WxHxD):105 x 30 x 27 mm

Weight:0.03 kg

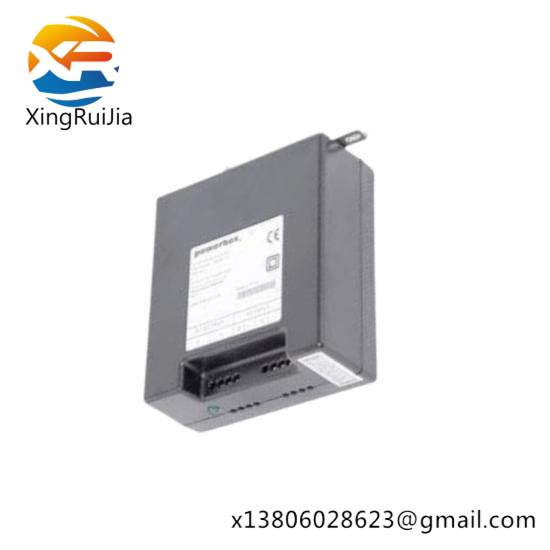

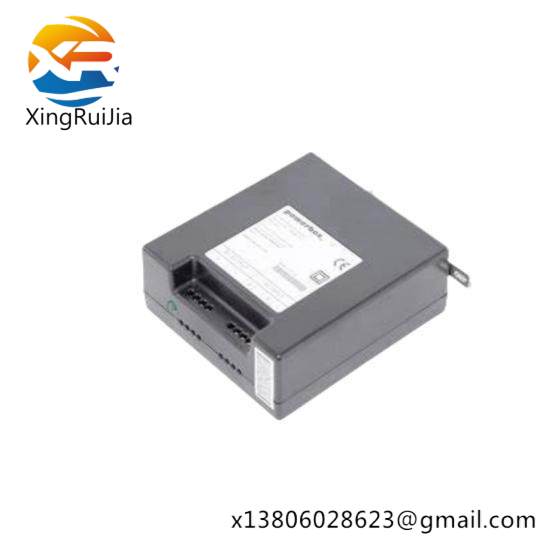

    The ABB 3HAC14178-1 Industrial Control Module is engineered to provide unparalleled control and efficiency in industrial automation systems. It features a compact yet robust design, making it ideal for space-constrained environments without compromising on performance.

    With its versatile communication interface supporting MODBUS protocols, this module seamlessly integrates with a wide range of industrial equipment, enhancing system interoperability and data exchange.

    Equipped with 4 Analog Inputs, users can monitor and control various physical parameters in their processes with high accuracy. The 4 Relay Outputs allow for precise control over actuators and motors, optimizing operational efficiency.

    Offering ample memory capacity, this module ensures that all critical system configurations and data are stored securely, facilitating easy access and maintenance.

    Operated within an expanded temperature range from -20°C to 60°C, the ABB 3HAC14178-1 is designed to withstand harsh industrial conditions, ensuring continuous operation even under extreme environmental factors.

    The IP20 protection class further enhances the module’s durability by providing basic splash and dust protection, allowing for reliable operation in diverse industrial settings.
