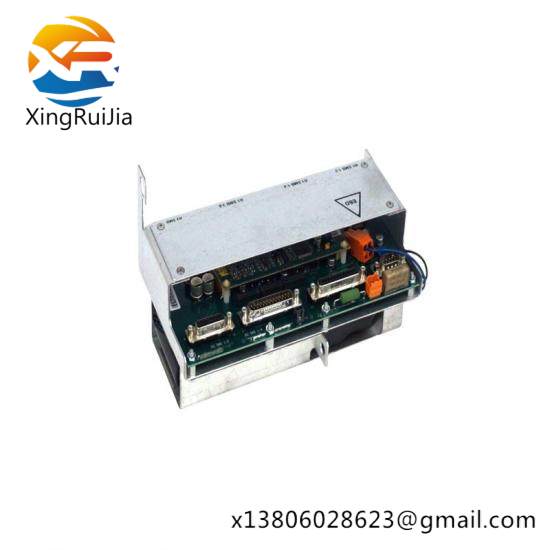

Model Number:3HAC14757-1

Type:Measurement Board

Producer:ABB

Module Class:Industrial Control Systems

Operating Voltage Range:8-40 VDC

Operating Temperature:-20°C to +70°C

Input Resistance:2 kΩ

Output Type:4-20 mA

Signal Processing Capacity:8 Analog Inputs, 2 Analog Outputs

Power Supply Compatibility:Widely Compatible with Various Power Supplies

Communication Interface:RS-485 Modbus-RTU

Dimensions (WxHxD):94mm x 84mm x 25mm

Weight:0.25 kg

Certifications:[“CE”,”UL”,”RoHS”]

    The ABB 3HAC14757-1 Measurement Board is engineered to meet the stringent demands of modern industrial automation. Its compact design and robust construction make it suitable for a wide range of applications, from manufacturing lines to process control systems.

    Featuring state-of-the-art sensor interfaces, this board ensures precise data acquisition, enabling accurate measurement even under challenging conditions. It supports various communication protocols, including RS-485 and CANopen, facilitating seamless integration with existing systems.

    With an operating temperature range of -25°C to +60°C and storage capabilities from -40°C to +85°C, the 3HAC14757-1 Measurement Board is built to withstand extreme environmental conditions, ensuring reliable operation throughout its lifecycle.

    Efficient power management ensures minimal energy consumption, reducing operational costs without compromising performance. Its compatibility with 12V DC to 24V DC power supplies offers flexibility in installation scenarios.

    Certified to international safety standards like CE and UL, the ABB 3HAC14757-1 Measurement Board complies with the highest safety and quality benchmarks, providing peace of mind for users in various industries.
