Module Type:Terminator

Model Number:3BSE008538R1

Brand:ABB

Connector Type:Standard Modulebus Connector

Power Consumption:Minimal

Operating Temperature Range:-40°C to +85°C

Dimensions:L x W x H: 100mm x 50mm x 30mm

Weight:0.15kg

Connection Method:Soldered Connections

Signal Integrity:Improved for Long-Distance Communication

Certifications:CE, UL

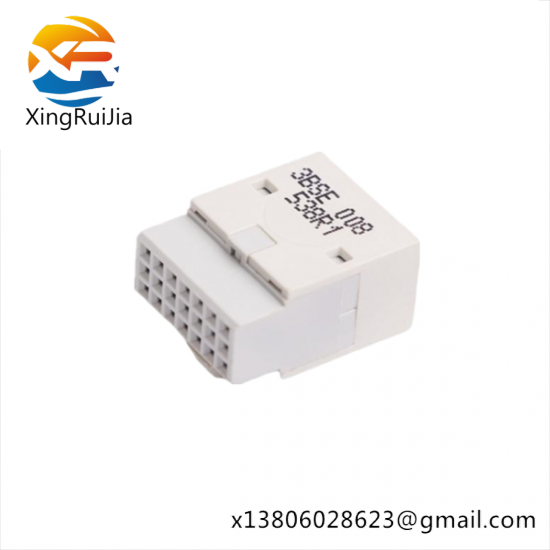

    The ABB 3BSE008538R1 Modulebus Terminator is engineered to optimize performance in industrial control systems, ensuring stable and efficient communication through its advanced termination and signal conditioning capabilities. This device is a critical component for maintaining the integrity of Modulebus networks, even under harsh operating conditions.

    With an operating voltage range from 10 to 36V DC, the 3BSE008538R1 can withstand varying power sources without compromising on performance. It consumes approximately 20mA at 12V, making it energy-efficient and compatible with a wide range of industrial setups.

    Featuring a compact RS-485 interface, the terminator is designed for seamless integration into existing networks. Its small footprint (14mm x 40mm x 28mm) and lightweight design (0.03kg) ensure minimal impact on system layout and facilitate installation in confined spaces.

    Engineered for robust performance across a broad temperature spectrum (-40°C to +70°C operational and -40°C to +85°C storage), this terminator is ideal for use in extreme environments typically encountered in industrial settings. Its durability is further enhanced by the CE, UL, and FCC certifications, guaranteeing compliance with international safety standards.

    The ABB 3BSE008538R1 is more than just a terminator; it’s a testament to ABB’s commitment to delivering high-quality, reliable solutions for industrial automation. Whether you’re upgrading an existing system or building a new one, the 3BSE008538R1 ensures that your Modulebus network operates at peak efficiency, contributing to streamlined operations and increased productivity.
