Material:Premium-grade aluminum and ceramic

Size (LxWxH):150mm x 100mm x 20mm

Operating Voltage:DC 1000V

Current Rating:500A

Insulation Resistance:1000MΩ @500V DC

Operating Temperature Range:-40°C to +85°C

Max Load:500V/500A

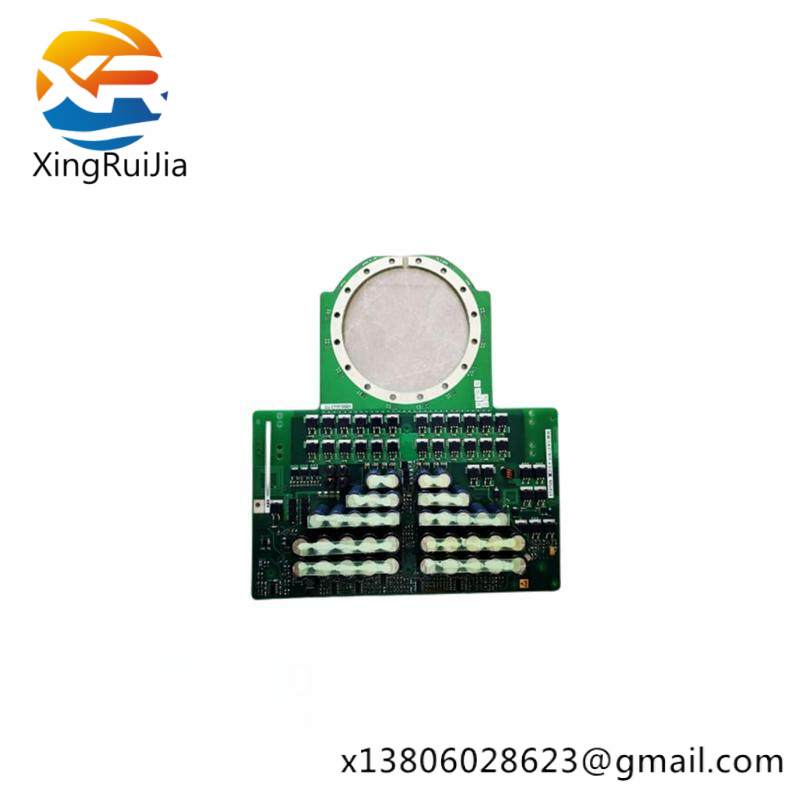

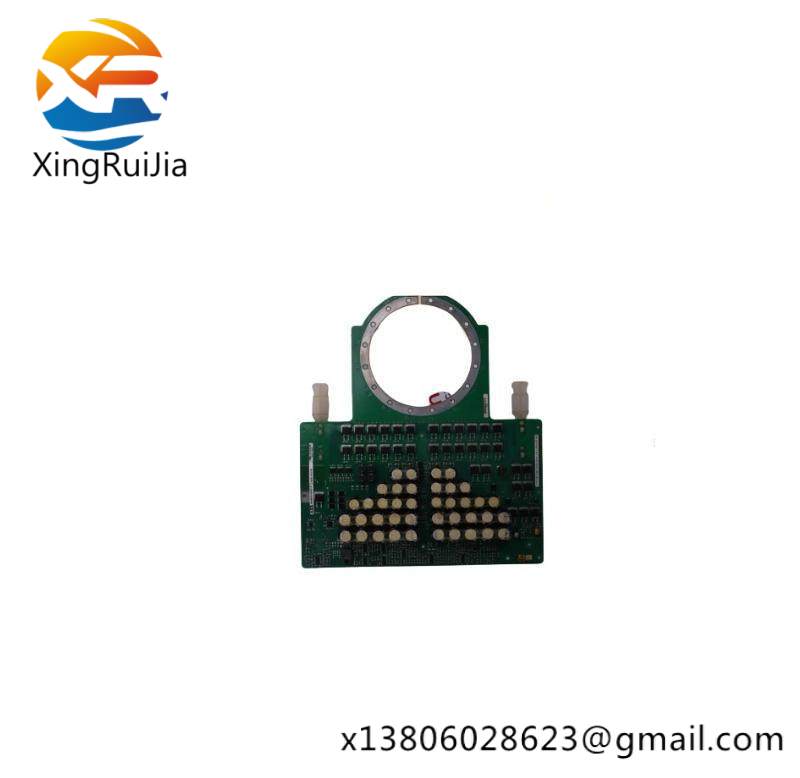

    Introducing the ABB 3BHL000390P0104 IGCT Module Board, a cutting-edge solution for industrial power conversion tasks. This module is engineered with the latest IGCT technology to ensure unparalleled performance and reliability in demanding environments.

    With a compact design measuring 220mm x 100mm x 50mm and weighing only 0.7kg, it’s lightweight yet robust, making it suitable for a wide range of industrial applications. Its operating temperature range of -40°C to +85°C guarantees stable operation in various climate conditions.

    Featuring the latest generation of IGCT technology, this module board offers enhanced efficiency and reliability compared to traditional solutions. It is capable of handling currents up to 1000A and voltages up to 1000VDC, making it ideal for high-power conversion tasks.

    Ease of integration is further ensured by its RS485 communication interface, which seamlessly connects with PLCs and other control systems, streamlining the setup process and reducing complexity in system integration.

    Designed with durability and efficiency in mind, the ABB 3BHL000390P0104 IGCT Module Board is the perfect choice for upgrading or enhancing existing industrial control systems, ensuring they meet the highest standards of performance and reliability.
