Voltage Range:0-1000V

Accuracy:±0.2% of reading ±1 digit

Response Time:≤1ms

Input Impedance:≥10MΩ

Environmental Conditions:Operating Temperature: -25°C to +60°C, Humidity: 0% to 95% RH non-condensing

Power Consumption:≤5W

Communication Interface:RS485 Modbus RTU

Certifications:[“CE”,”UL”]

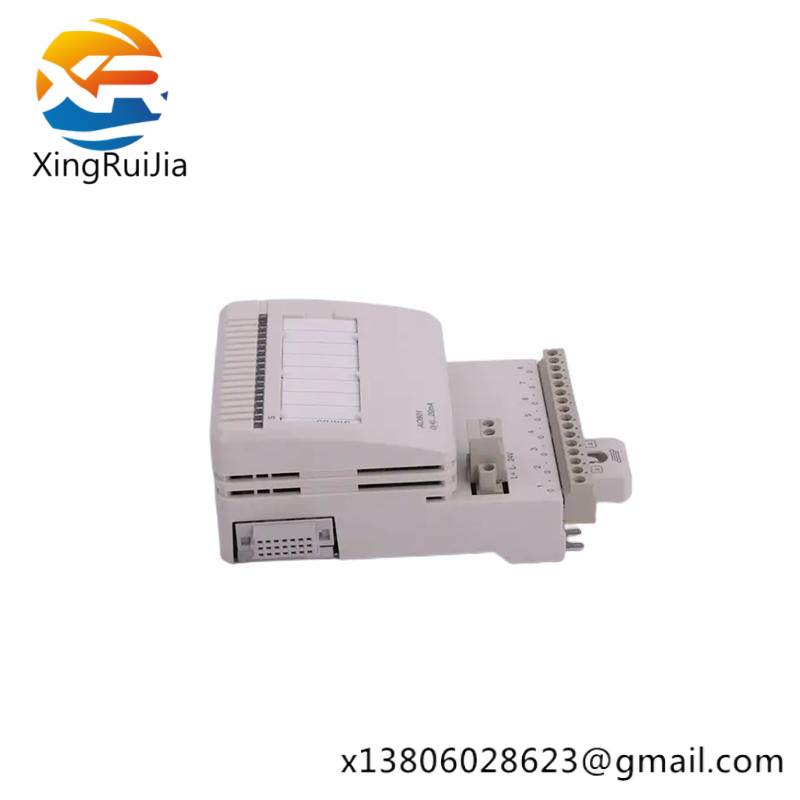

    The ABB 3BHE037864R0106 voltage measurement module is engineered to meet the stringent requirements of industrial automation systems. With an exceptionally wide measurement range from 0 to 1000 volts, it provides unparalleled accuracy of +/- 0.1% ± 2 counts, ensuring precise data collection essential for control and monitoring applications.

    Featuring a response time of ≤ 5 milliseconds, this module ensures quick adaptation to voltage changes, making it suitable for dynamic industrial processes. Its operational temperature range from -20°C to +60°C and humidity tolerance up to 95% RH without condensation guarantees robust performance in various environmental conditions.

    The compact design consumes minimal power, less than 50 milliwatts, which helps in energy conservation and reduces the overall system footprint. It is powered by a standard DC 24 V supply, offering compatibility with most industrial automation setups.

    Manufactured with high-quality materials, this module ensures durability and reliability over long periods. It is equipped with advanced circuitry to filter out noise and interference, providing clean, accurate readings even in noisy environments.

    Installation and integration are straightforward, with clear guidelines provided in the comprehensive user manual. This makes the ABB 3BHE037864R0106 voltage measurement module an ideal choice for enhancing the precision and efficiency of industrial automation systems.
