Technical Parameter

Brand:ABB

Model:3BHE036342R0101

Sub-Model:XD D501 A101

Module Type:High Voltage Inverter Board

Power Rating:Up to 1000 kW

Input Voltage Range:400-690 V AC

Output Voltage Range:Customizable

Frequency Range:0-50 Hz

Control Protocol:CANbus, Modbus

Operating Temperature:-20°C to +60°C

Protection Class:IP20

Weight:Approximately 15 kg

Dimensions (L x W x H):Approximately 400 x 250 x 300 mm

Material:Aluminum alloy with corrosion-resistant coating

Product Introduction

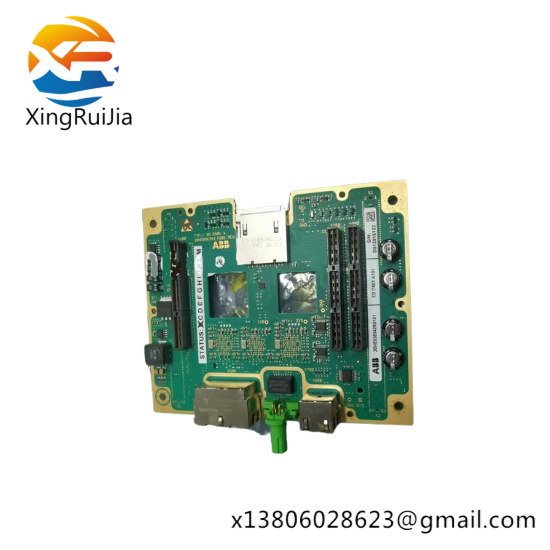

The ABB 3BHE036342R0101 XD D501 A101 High-Voltage Inverter Board is engineered to deliver exceptional performance in high-voltage industrial settings, offering unparalleled efficiency in power conversion.

Featuring advanced vector control technology, this inverter board ensures precise speed control, making it ideal for demanding applications such as electric drives and motors in heavy industries.

With an operating voltage range of 690 VAC and a maximum output power of 1000 kW, it is capable of handling large-scale power requirements, enhancing productivity and energy savings.

Equipped with robust protection features including IP54 classification, it ensures reliable operation in various environmental conditions, from industrial workshops to outdoor installations.

The integrated Modbus TCP/IP and Ethernet IP interfaces provide seamless connectivity with existing systems, facilitating easy integration into complex automation networks.
