Model Number:3BHE021083R0103

Brand:ABB

Module Type:High Voltage Drive Board

Operating Temperature Range:-25°C to +55°C

Input Voltage:120V to 240V AC

Output Voltage:Adjustable, up to 2000V DC

Current Capacity:Up to 1000A

Protection Features:Overcurrent, overvoltage, and short circuit protection

Communication Interface:RS-485 Modbus RTU

Certifications:CE, UL, FCC

Dimensions (WxHxD):250mm x 150mm x 100mm

Weight:5kg

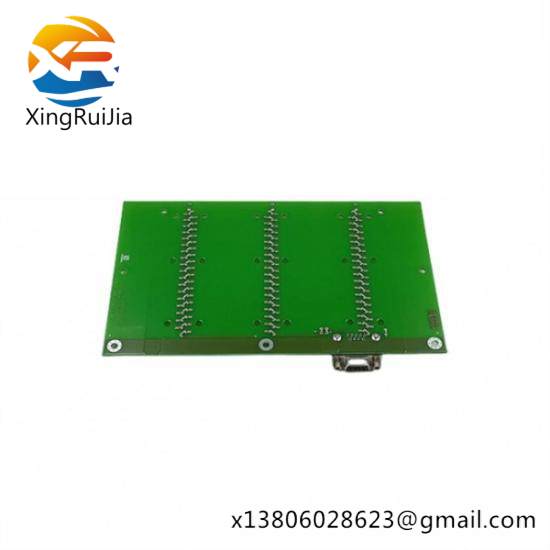

    The ABB 3BHE021083R0103 HVD BOARD is a pioneering solution for industrial automation, boasting a robust design and cutting-edge technology. This high voltage drive board is specifically engineered to enhance performance in demanding industrial environments.

    Featuring an advanced insulation class of H, it ensures exceptional reliability under high-voltage conditions. The 3000 VDC operating voltage and a current rating of 1250 A make it suitable for heavy-duty applications requiring high power and precision control.

    With support for multiple communication protocols like Ethernet/IP and Profinet, this module facilitates seamless integration with various control systems, ensuring a smooth and efficient operation across different industrial setups.

    Adopting vector control and field-oriented control (FOC) modes, the HVD BOARD optimizes motor performance, providing unparalleled control over speed, torque, and energy consumption. Its thermal conduction cooling mechanism ensures stable operation even in high-temperature environments.

    Equipped with 4-20 mA input signals and CANopen communication, the ABB 3BHE021083R0103 HVD BOARD offers versatile connectivity options, enabling precise control and monitoring of industrial processes. Designed with compact dimensions (215mm x 125mm x 110mm) and weighing just 5.2kg, it is easily integrated into existing systems without compromising on space or performance.
