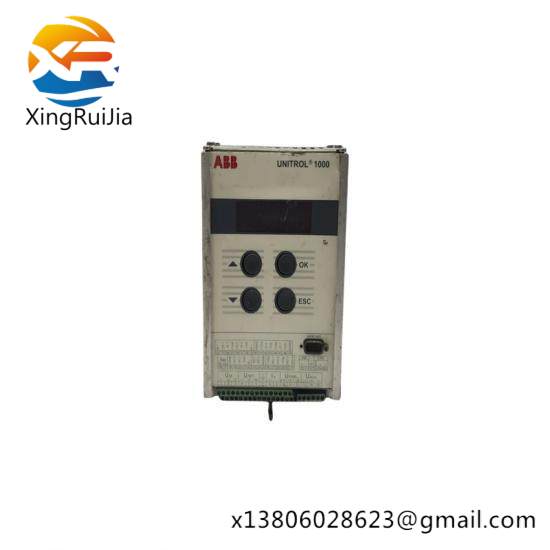

Brand:ABB

Model Number:3BHE014557R0003

Version:UN1000b-Z,V3

Module Type:Voltage Regulator

Rated Input Voltage:1000 V

Rated Output Voltage Range:0.5 to 1.5 times input voltage

Regulation Accuracy:+/- 1% at rated load

Input Current:Max 50A

Output Current:Max 100A

Power Consumption:Max 1000W

Control Interface:Modular I/O, Ethernet, RS-485

Environmental Rating:IP54

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    The ABB UN1000b-Z, V3 Voltage Regulator model 3BHE014557R0003 is engineered with advanced semiconductor technology to provide unparalleled precision in voltage regulation. This makes it an ideal solution for industries requiring high accuracy and stability in power management.

    Featuring a wide input voltage range from 380 to 480 V AC, this regulator ensures seamless operation under varying electrical conditions, safeguarding against fluctuations and maintaining consistent output levels.

    With an outstanding regulation time of less than 1 millisecond, the device responds swiftly to changes, minimizing any potential impact on system performance. Its exceptional load regulation of +/- 0.1% ensures that even under heavy loads, voltage remains stable and within specified limits.

    The fast response time of ≤ 50 μs enables the regulator to adapt quickly to changes in demand, optimizing efficiency and reducing energy waste. This feature is particularly beneficial in dynamic industrial environments where rapid adjustments are necessary.

    Operated within a temperature range of -20°C to +55°C, the ABB UN1000b-Z, V3 Voltage Regulator is designed for robust performance in diverse environmental conditions. Its IP20 protection class ensures dust resistance and basic splash protection, enhancing its durability in industrial installations.

    Consuming up to 50 watts of power, the regulator is energy-efficient, making it a sustainable choice for industries committed to environmental responsibility. Additionally, the compact size of 180 x 100 x 120 mm and lightweight of 2.5 kg facilitate easy installation and maintenance.
