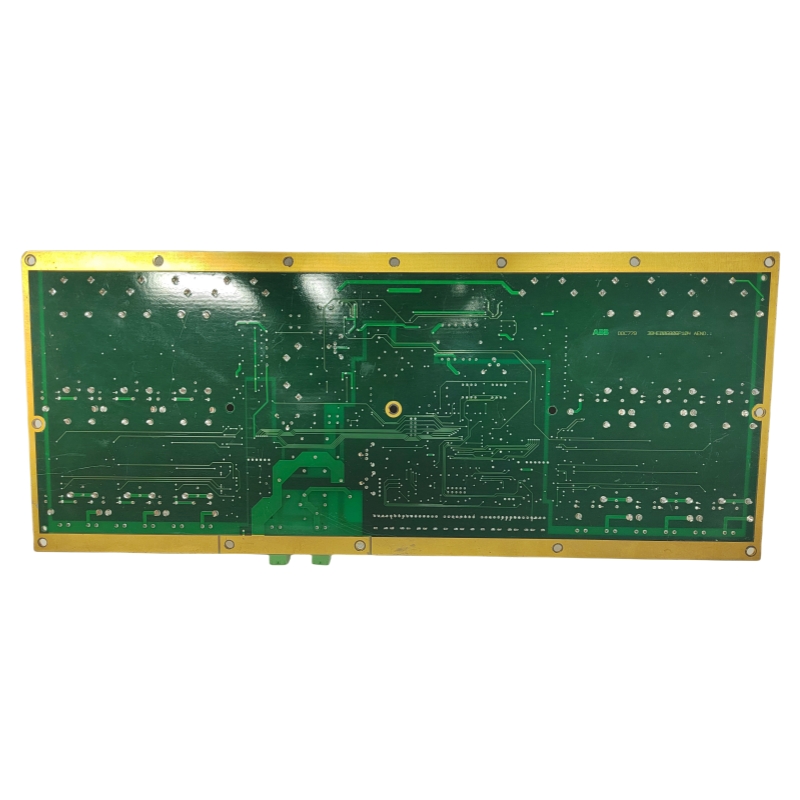

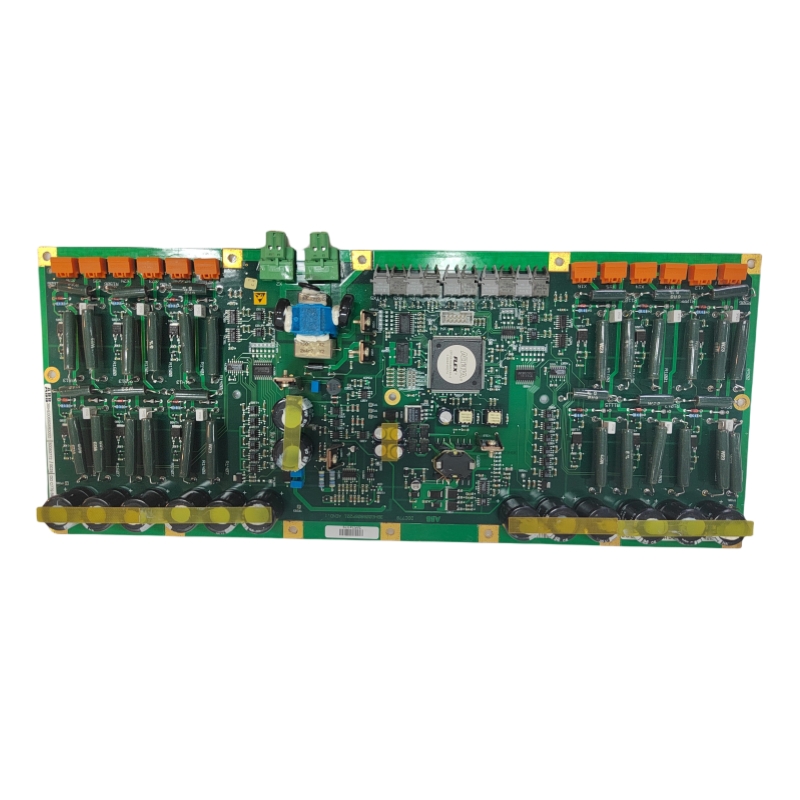

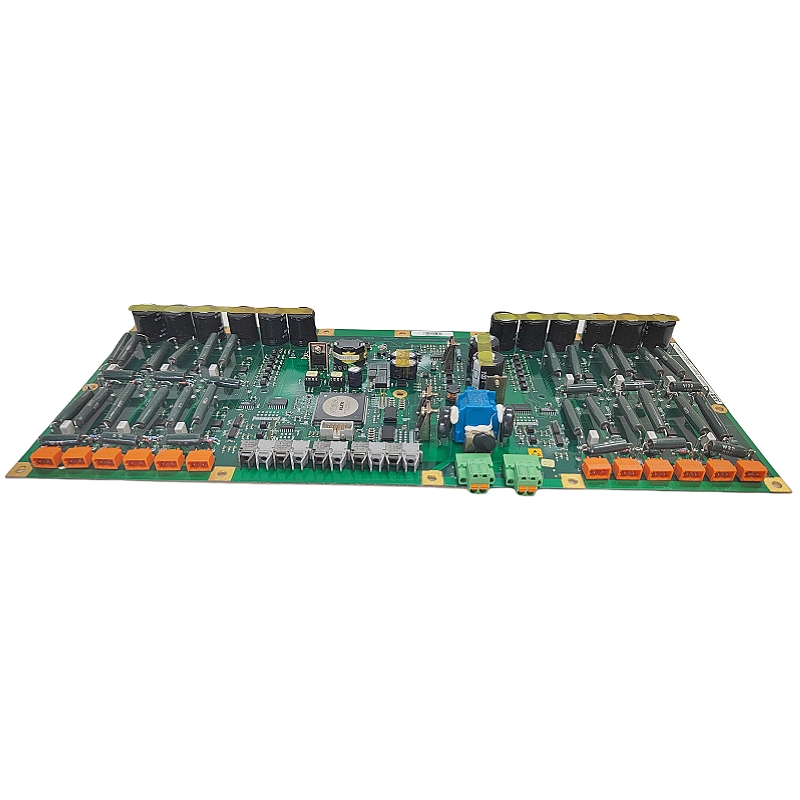

ABB 3BHE006805R0002 DDC779BE02
I. Overview
The ABB DDC779BE02 3BHE006805R0002 is a module launched by ABB for industrial automation control systems, and it is one of the products in the DDC779 series. As a core component of the control system, this module is widely used in various fields such as manufacturing, oil and gas, water treatment, power systems, chemical and process industries, energy management systems, and transportation systems. It can not only achieve precise control of industrial processes but also seamlessly integrate with other equipment through integrated communication interfaces, thereby improving the overall efficiency and stability of the system.
II. Parameters
The parameters of this module are as follows:
- Input voltage: 24V DC.
- Output voltage: 24V DC.
- Maximum output current: 10A.
- Operating temperature range: -40℃ to +85℃.
- Protection level: IP20 or IP30.
- Dimensions: 48×48×110mm or 96×48×125mm.
- Weight: 0.1 kg or 0.5kg.
- Communication interfaces: Supports Profibus DP electrical interface, optical fiber interface, RS485, Ethernet, etc.
- I/O points: Up to 32 points.
- Processor: 32-bit RISC processor.
- Memory: 128 KB RAM, 512 KB Flash.
- Power consumption: 2W or <10W.
III. Product Features
- Versatility: Supports digital input/output, analog input/output, RS485 communication interface, and Modbus RTU protocol, suitable for various industrial control needs.
- High reliability: Designed for long-term stable operation, suitable for challenging industrial environments.
- Safety: Supports CPU redundancy to achieve higher availability, and has security features to protect industrial processes and machines from external interference and attacks.
- Easy installation and maintenance: Modular design facilitates system integration and maintenance.
- High-speed data transmission and remote control: Integrated with Ethernet communication function, supports seamless integration with other Ethernet-based devices, enabling high-speed and reliable data transmission and remote control.
IV. Structure and Composition
The ABB DDC779BE02 3BHE006805R0002 is an expansion module, usually used in the ABB AC800M control system. It can be installed via DIN rail or panel mounting, suitable for various industrial automation applications. The module has a compact structural design, facilitating efficient control in limited spaces. Its internal structure includes key components such as a processor, memory, I/O interface, and communication interface, ensuring stable operation in complex industrial environments.
V. Application Fields
This module is widely used in the following fields:
- Industrial automation: Used for production line control, robot control, packaging machinery control, printing machinery control, textile machinery control, etc.
- Power systems: Used for safe switching and distribution of electricity.
- Chemical and process industries: Provide precise motor control.
- Energy management systems: Realize equipment interconnection, information sharing, and collaborative work.
- Transportation systems: Provide efficient power control solutions.
- Manufacturing: Used to control industrial equipment such as motors, sensors, and actuators.
VI. Installation and Maintenance
- Installation methods: The module can be installed via DIN rail or panel mounting. For specific installation methods, please refer to the product manual.
- Installation steps:
- Ensure that the installation environment meets the requirements of operating temperature and protection level.
- Follow the steps in the product manual for installation to ensure the module is correctly connected to the control system.
- After installation, perform preliminary electrical connection and function tests to ensure the module operates normally.
- Maintenance:
- Regularly check whether the connections of the module are firm, and whether there is looseness or damage.
- Check the heat dissipation of the module to ensure it operates within the normal working temperature range.
- Regularly clean the surface of the module to prevent dust and dirt from affecting its performance.
- If any abnormal operation of the module is found, refer to the product manual or contact the manufacturer for repair in a timely manner.
————————————————————————————————-
