Rated Voltage (V):450

Rated Current (A):120

Thermal Design:ZGAD-582 Heat Sink

Operating Temperature Range:-40°C to +175°C

Insulation Resistance:≥10MΩ

Conduction Loss at 100% Duty Cycle:< 0.4W

Switching Frequency:Up to 50 kHz

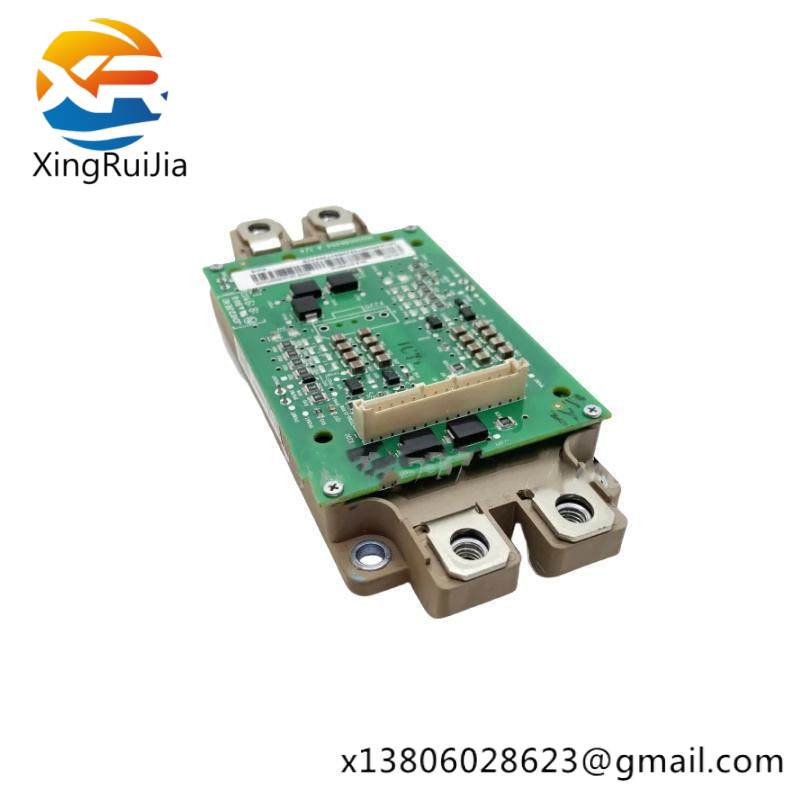

    The ABB 2MBI450VX-120-50/ZGAD-582 IGBT modules are engineered to withstand harsh industrial environments, ensuring reliable operation in extreme temperatures and varying conditions.

    With an operating voltage of 450V and a current rating of 120A, these modules are ideal for high-power applications requiring both efficiency and robustness.

    Featuring an insulation resistance of ≥ 10^9 Ohm, these modules offer unparalleled electrical isolation, safeguarding against potential short circuits and enhancing system safety.

    Capable of switching frequencies up to 20 kHz, they enable precise control over motor speeds, contributing to smoother operations and reduced energy consumption.

    Equipped with a DPAK (Dual Power Aluminum Package), the design ensures efficient heat dissipation, prolonging the life cycle of the modules and reducing maintenance costs.
