Operating Voltage:480 VAC

Phase Configuration:3 PH

Nominal Current:55 Amps

Motor Power Rating:40HP Normal Duty, 35HP Heavy Duty

IP Protection Class:IP20 / Type 1

Environmental Filter:CE EMC Directive (89/336/EEC) compliant

Communication Interface:No Communication Module

Control Type:Phase II, Expanded Cassette, No Feedback

Drive Technology:AC Drive

IGBT Installation:Brake IGBT

Resistor Configuration:Without Drive Mounted Brake Resistor

Conformal Coating:Yes

Mounting Configuration:Second Environment Filter

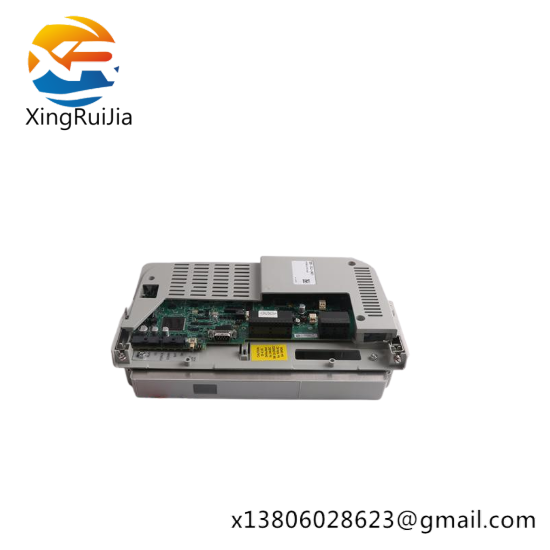

    The ABB 20D-DL2-CKE1 PowerFlex 700S Phase II Drive Control boasts advanced control algorithms and high-speed processing capabilities, ensuring smooth operation and precise control across various industrial applications.

    With its robust design and durable construction, this drive is ideal for heavy-duty operations requiring consistent performance and reliability. It incorporates features such as an expanded cassette for enhanced functionality and an integrated brake IGBT for quick and safe stop sequences.

    Equipped with a phase II control system, this drive offers improved efficiency and adaptability, making it suitable for a wide range of machinery and processes. The drive’s compatibility with different types of motors allows for versatile integration into existing systems.

    Designed with user-friendliness in mind, the 20D-DL2-CKE1 comes with a user-friendly interface and comprehensive diagnostics tools, enabling operators to monitor and maintain the drive efficiently. Its compact size and modular design facilitate easy installation and maintenance.

    Moreover, the drive is protected against environmental factors through its IP20/IP1 rating, ensuring reliable operation in diverse industrial settings. Additionally, the conformal coating enhances the drive’s resistance to dust, moisture, and other contaminants, further extending its operational lifespan.
