Application Voltage:600V DC

Maximum Current:100A

Operating Frequency:Up to 10kHz

Input Power:30W

Cooling Method:Convection cooling

Environmental Temperature Range:-40°C to +85°C

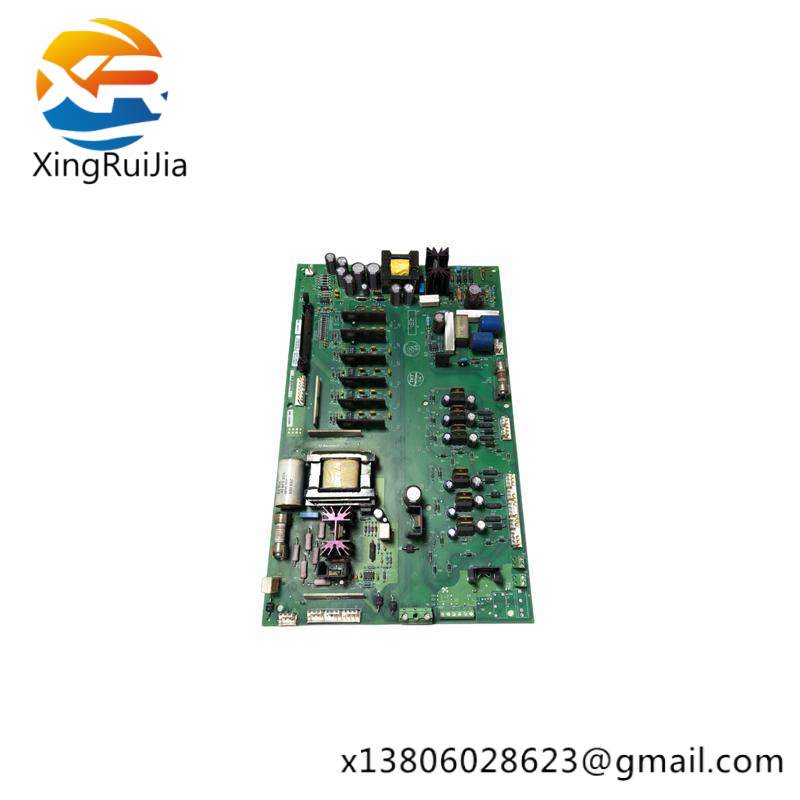

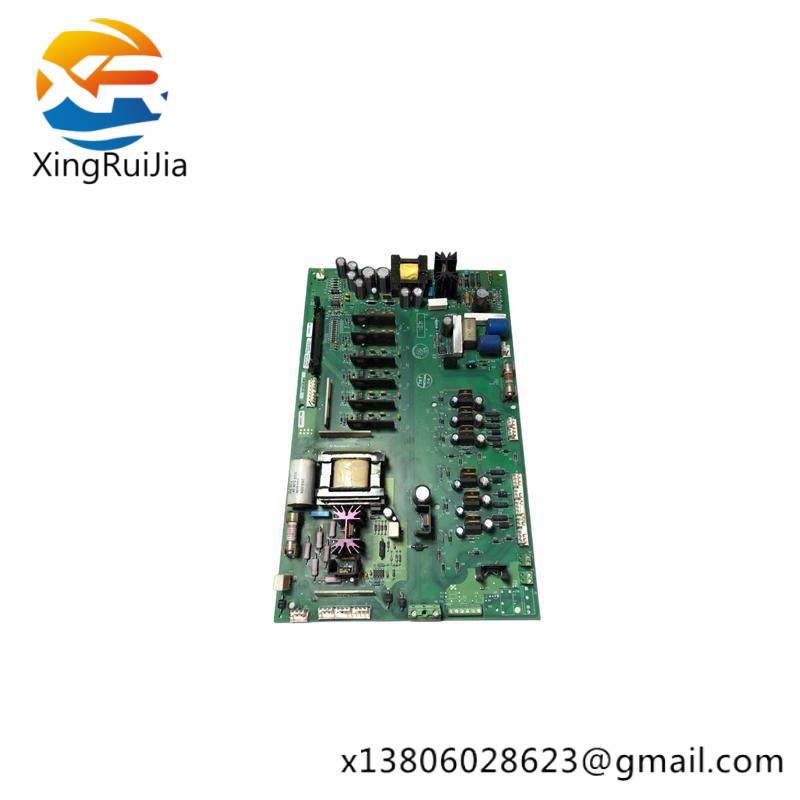

    The AEG 1336-BDB-SP30D Gate Drive Board is engineered for precise control over motor operations, ensuring smooth and efficient performance across a wide range of industrial settings.

    Featuring an innovative PCB design, this board optimizes power delivery, minimizing heat dissipation and enhancing system longevity.

    With its robust temperature rating, the AEG 1336-BDB-SP30D can withstand harsh environmental conditions without compromising performance, making it ideal for outdoor or demanding industrial applications.

    Equipped with multiple PWM output channels, the board supports versatile motor configurations, enabling users to tailor their systems to specific requirements for enhanced productivity.

    Integrated with an RS-485 communication interface, the AEG 1336-BDB-SP30D facilitates seamless integration with existing automation systems, simplifying setup and maintenance procedures.
