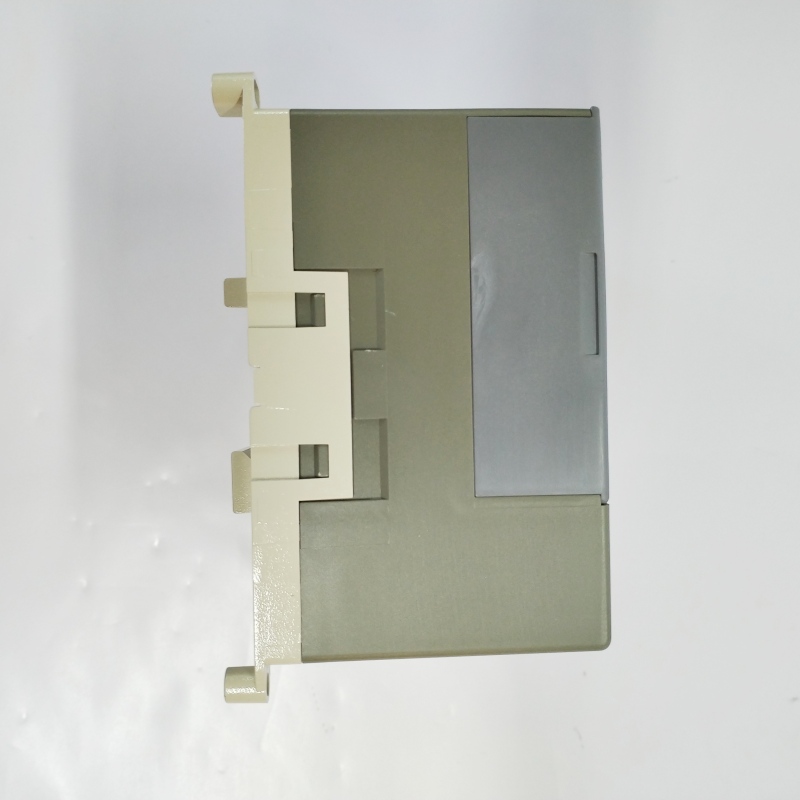

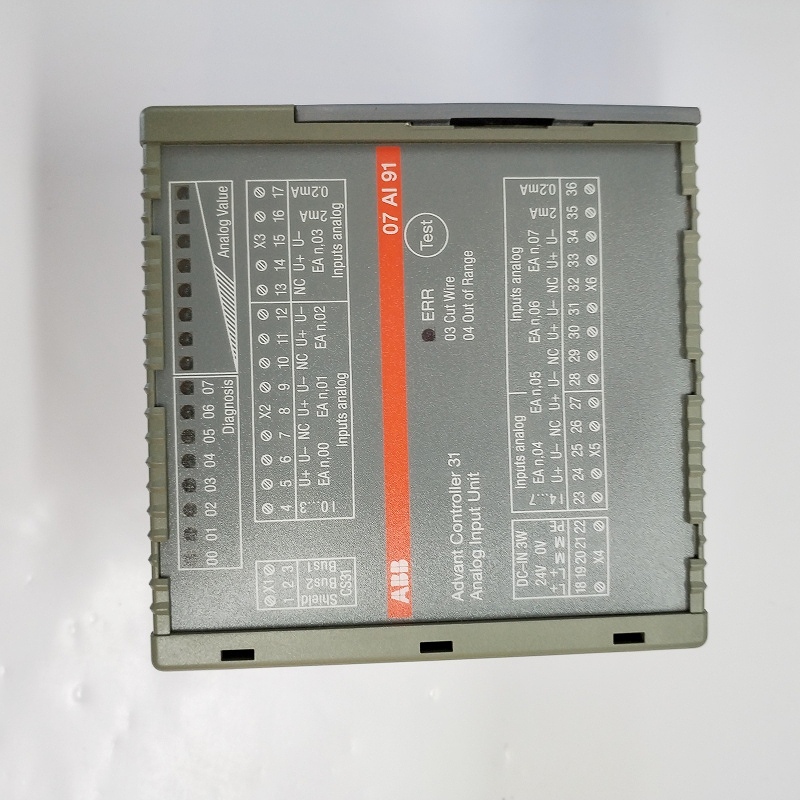

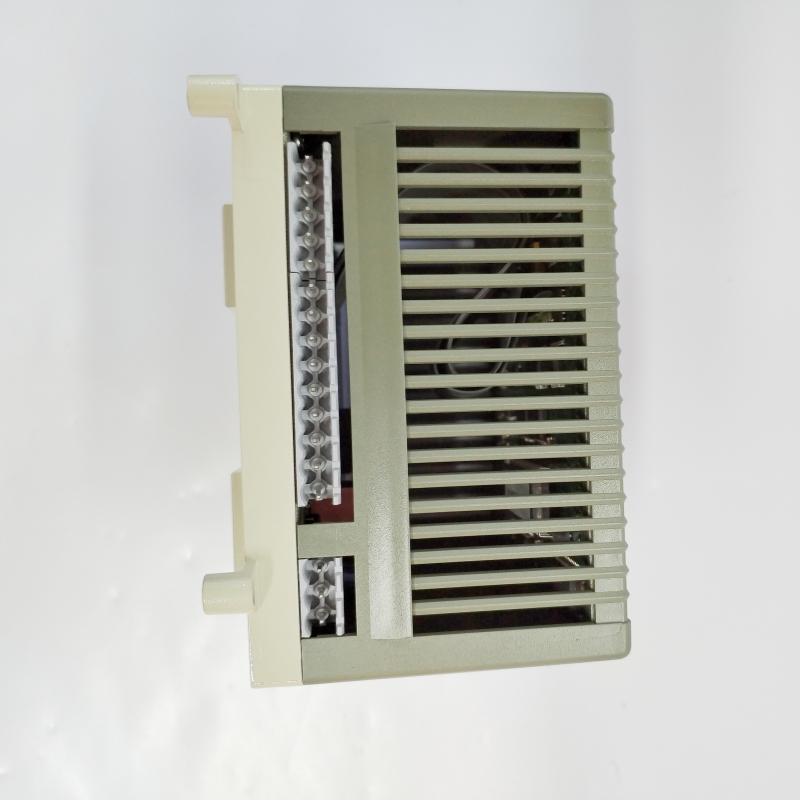

ABB 07AI91 GJR5251600R0202ABB

Overview

Parameters

• Model: 07AI91 GJR5251600R0202
• Brand: ABB
• Product type: Analog input/output module
• Number of channels: 8 analog input channels
• Power supply voltage: 24 V DC
• Resolution: 8/12 bits + sign 1/3 wires
• Interface type: CS31 system bus
• Dimensions: 16cm×16cm×12cm
• Weight: 0.8kg
• Warranty period: 1 year

Product Features

• High precision: The module has high-precision analog signal acquisition capability, suitable for industrial applications requiring precise control.
• Versatility: Supports multiple sensor types, including thermocouples, RTD, current and voltage inputs, applicable to various industrial scenarios.
• Reliability: Uses high-quality electronic components and advanced manufacturing processes to ensure long-term stable operation.
• Compatibility: Compatible with AC31 series industrial controllers, facilitating integration into existing automation systems.
• Installation method: Can be installed horizontally or vertically to meet different installation requirements.

Structure and Composition

• Analog input channels: 8 independent analog input channels, each supporting different sensor types.
• Power interface: Provides 24 V DC power input to ensure the normal operation of the module.
• Communication interface: Communicates with other devices via the CS31 system bus.
• Indicators: Equipped with LED indicators to display the module’s status and error information.
• Test button: Provides a test function for easy debugging and maintenance.

Application Fields

• Process control systems: Used for precise control and monitoring of parameters such as temperature and pressure in industrial processes.
• Power systems: Used for monitoring and controlling the operating status of power systems.
• Environmental monitoring systems: Used for collecting and processing data from environmental sensors, such as temperature and humidity.
• Laboratory test systems: Used for controlling various test equipment and instruments in laboratories.

Installation and Maintenance

• Installation: The module can be installed horizontally or vertically. During installation, ensure that the power and communication interfaces are correctly connected and follow the manufacturer’s installation guidelines.
• Maintenance: Regularly check the module’s power and communication interfaces to ensure their normal operation. If any abnormalities are found, contact technical support for repairs in a timely manner.
