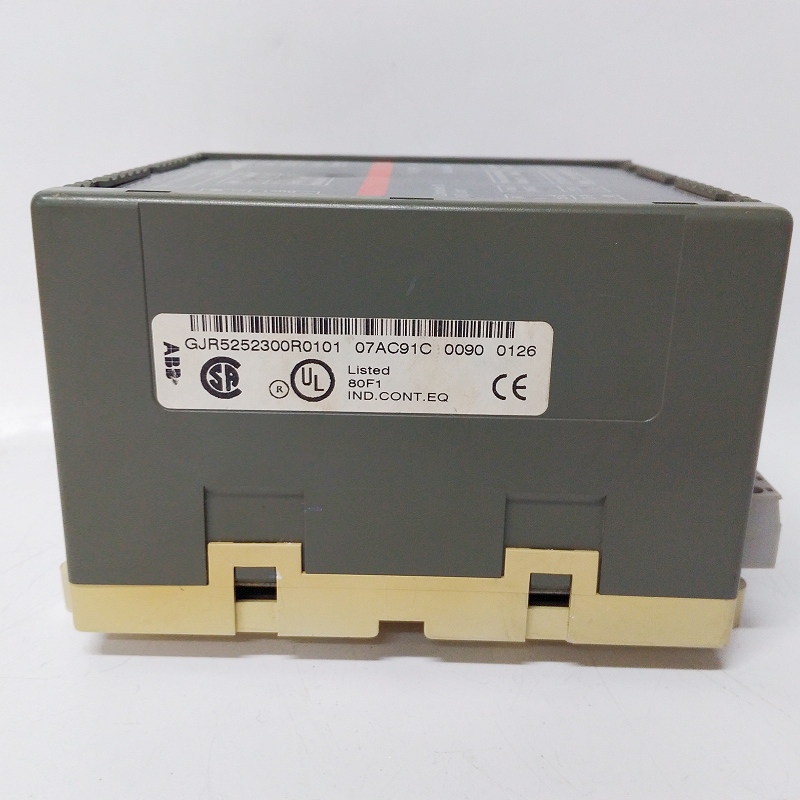

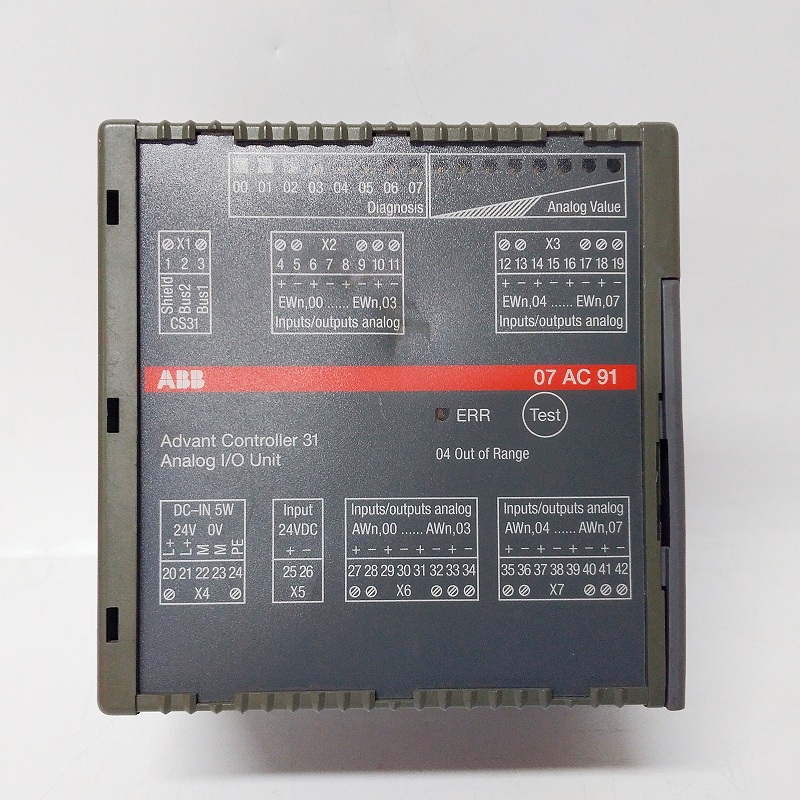

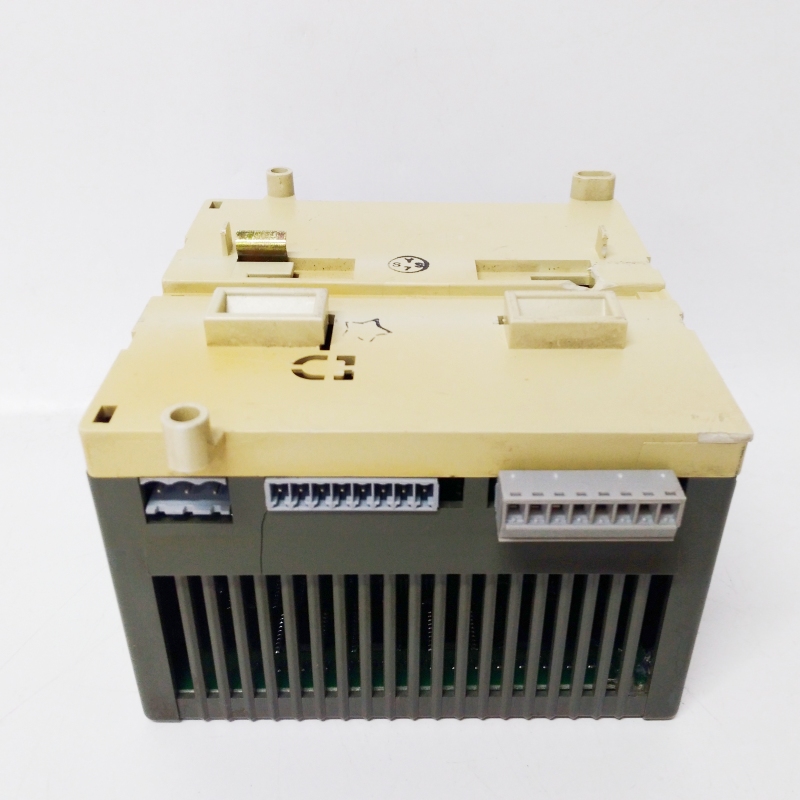

ABB 07AC91 GJR525230R0101

I. Overview

The ABB 07AC91 GJR5252300R0101  is a module from the ABB Advant Controller 31 series, primarily designed for industrial automation control systems to acquire and control analog signals. This module supports a wide range of industrial applications, including process control, automated production lines, power systems, water treatment, and food & beverage processing. Its purpose is to provide users with high-precision, highly reliable analog signal processing capabilities to meet the demanding requirements of complex industrial environments.

II. Specifications

Key specifications of the module include:

• Input/Output Channels: 8 analog input channels and 8 analog output channels, supporting signals of ±10V or 0…20mA per channel.
• Resolution: 12-bit + sign.
• Power Supply: 24V DC.
• Dimensions: 120mm (W) × 140mm (H) × 85mm (L), weighing 0.81kg.
• Operating Temperature Range: 0°C to +55°C (operational), -25°C to +75°C (storage).
• Protection Rating: IP20.
• Communication Interfaces: Supports multiple protocols, including Ethernet, serial port, Modbus, and Profibus.
• Processing Capability: High-speed data processing with low latency, suitable for real-time control.

III. Key Features

The ABB 07AC91 GJR5252300R0101 offers the following features:

• High Precision: Equipped with high-accuracy ADC/DAC converters for reliable signal conversion.
• Durability: Built with high-quality materials for long-term reliability.
• Easy Installation: Compact design for quick deployment.
• Versatility: Supports multiple signal types (4-20mA, 0-10V, etc.) with flexible configuration options.
• Communication Flexibility: Compatible with various protocols for seamless system integration.
• Advanced Networking: Supports dual Profibus DP buses with auto-adaptive speeds and fiber-optic ring topology.

IV. Structure and Components

The ABB 07AC91 GJR5252300R0101 consists of:

• Analog Input Channels: 8 channels for ±10V or 0…20mA input signals.
• Analog Output Channels: 8 channels for ±10V or 0…20mA output signals.
• Power Module: Integrated 24V DC power supply for stable operation.
• Signal Processing Unit: Handles signal acquisition, conversion, and output to control devices.
• Communication Interfaces: Supports Ethernet, Modbus, Profibus, etc., for system integration.

V. Applications

The ABB 07AC91 GJR5252300R0101 is widely used in:

• Oil & Gas: Controls temperature, pressure, and flow rate in production processes.
• Power Systems: Monitors and regulates grid parameters.
• Water Treatment: Manages critical parameters in purification processes.
• Food & Beverage: Controls temperature and humidity during processing.
• Industrial Automation: A core component in automation systems, ensuring smooth production workflows.
• Process Control: Enables precise control to enhance efficiency and product quality.

VI. Installation & Maintenance

The ABB 07AC91 GJR5252300R0101 is designed for easy setup and upkeep:

• Installation: Mounts on DIN rails for secure placement in control cabinets.
• Setup Steps: Insert into the designated slot, connect power/signal cables, and configure communication settings.
• Maintenance: Compact design simplifies inspection and replacement. Regular cleaning and checks are recommended.
• Troubleshooting: Remote diagnostics tools are available, or contact ABB Technical Support for assistance.
