Type:Incremental Encoder

Model Number:AB 845H-SJDZ24FWY2C

Rotation Range:360°

Resolution:1024 PPR

Operating Voltage:10V to 30V DC

Output Type:Push-pull

Cable Length:2m

Material:Aluminum housing with stainless steel shaft

IP Rating:IP67

Operating Temperature:-20°C to +85°C

Load Capacity:Up to 20Nm

Mounting Style:Bolted flange mount

Weight:Approx. 200g

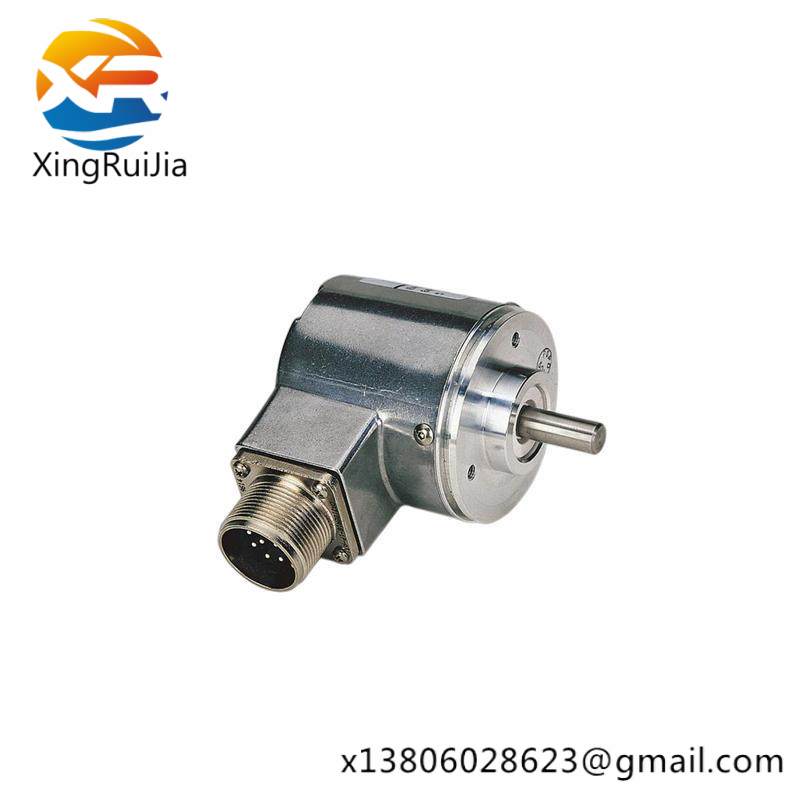

    The AB 845H-SJDZ24FWY2C Incremental Encoder is a state-of-the-art solution tailored for the demanding requirements of Industry 4.0 applications. Its robust design ensures reliable operation in a wide range of environmental conditions, making it ideal for integration into automated machinery and systems.

    Featuring a high-resolution output of 24 bits, this encoder provides precise position feedback, enabling accurate control and positioning capabilities essential for advanced manufacturing processes. The encoder’s push-pull output type facilitates seamless communication with various control systems, enhancing system efficiency and reliability.

    With an operating voltage range from 10 to 30V DC, the AB 845H-SJDZ24FWY2C is compatible with a broad spectrum of industrial power supplies, ensuring it can be easily integrated into existing systems. It supports up to four channels, allowing for versatile use in multi-axis applications.

    Equipped with an IP65-rated enclosure, the encoder is protected against dust and light water ingress, ensuring longevity and maintenance-free operation in challenging industrial settings. This makes it particularly suitable for outdoor or high-moisture environments where traditional encoders might fail.

    Capable of handling rotational speeds up to 1000 RPM, the AB 845H-SJDZ24FWY2C Incremental Encoder is designed for applications requiring high-speed precision, such as robotic arms, conveyor systems, and CNC machines. Its wide temperature range (-25°C to +85°C) ensures continuous operation across various operational climates.
