Processor Speed:1.5 GHz

Operating Voltage Range:12V – 36V

Current Output Capacity:20A

Input Logic Compatibility:TTL, CMOS

Communication Interface:RS-485, CAN

Operating Temperature:-40°C to +85°C

Certifications:CE, UL, FCC

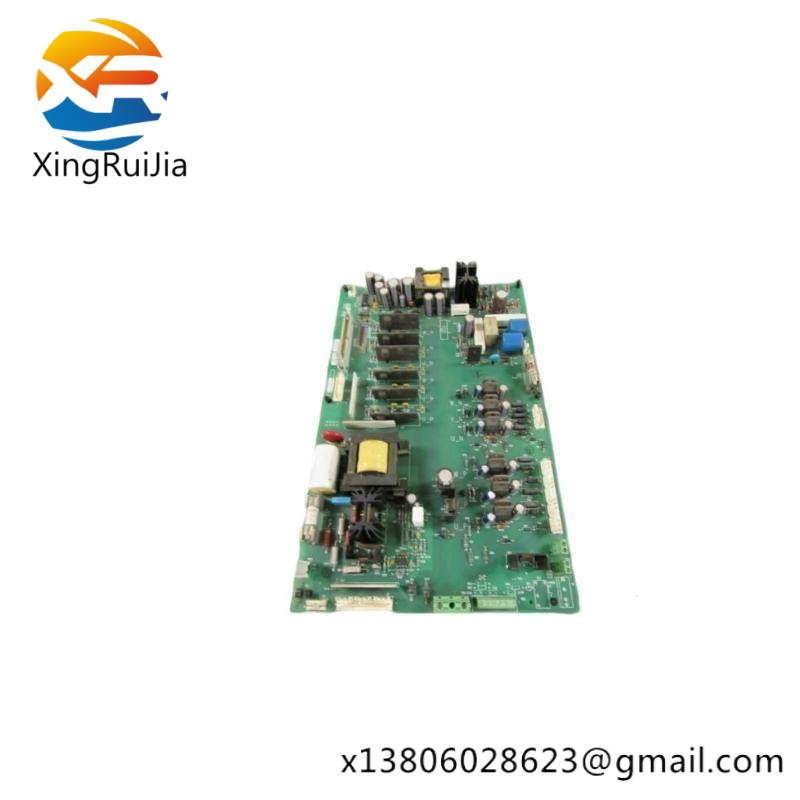

    The AB 1336-BDB-SP29D PCB Gate Drive Board is meticulously engineered to deliver superior performance in demanding industrial environments. It is equipped with an advanced microcontroller that ensures precise and efficient gate drive operations, minimizing power loss and maximizing system uptime.

    Featuring a wide input voltage range from 10V to 40V DC, this board is compatible with various power sources, making it a versatile choice for different applications. Its robust design allows operation within a temperature range of -40°C to +85°C, ensuring reliable performance in extreme conditions.

    With a peak output current rating of 20A, this module is capable of handling high-power loads efficiently, providing a substantial boost in productivity. The inclusion of an RS-485 interface facilitates seamless communication between the board and other components in the system, enhancing integration capabilities.

    For safety and durability, the AB 1336-BDB-SP29D is equipped with comprehensive protection features including overvoltage, undervoltage, overcurrent, and short circuit protection. This ensures not only the longevity of the board but also the overall system security.

    Crafted with precision and quality in mind, the AB 1336-BDB-SP29D PCB Gate Drive Board is an essential component for any industrial setup requiring high-speed, accurate, and reliable gate drive operations. Its compact size (70mm x 70mm x 10mm) and sleek design make it easy to integrate into existing systems, while its durability and efficiency contribute to a cost-effective and sustainable solution for your industrial control needs.
