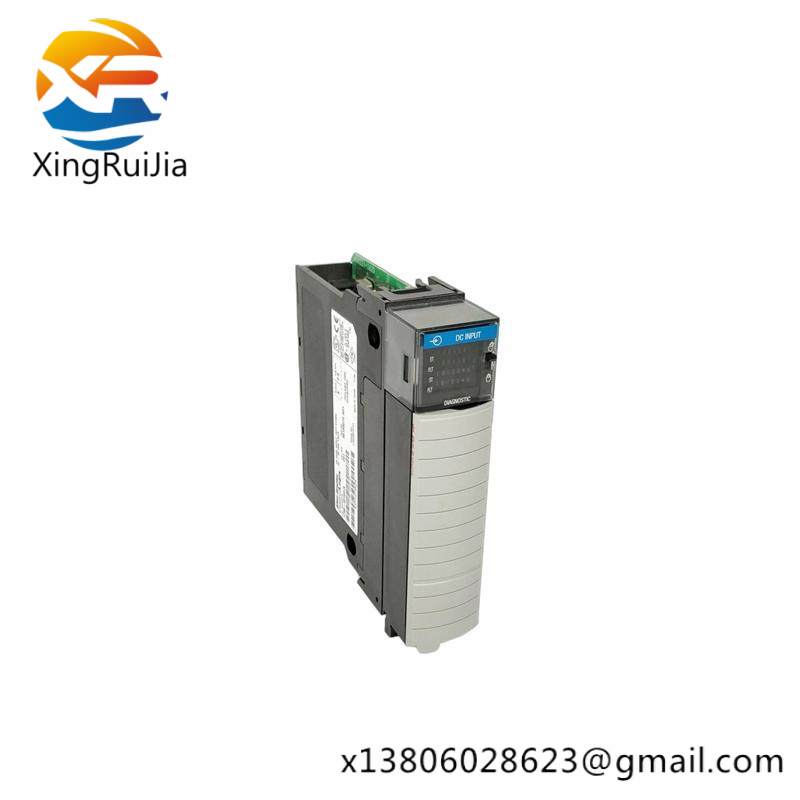

Model Number:1756-IB16D

Module Type:Discrete Input

Points:16

Voltage Range:10-31 VDC

Operating Temperature:-40°C to +70°C

Current Sinking Capability:Up to 10 mA

Communication Interface:ControlLogix Bus

Mounting:DIN Rail or Panel

Operating Voltage:24 VDC

Bus Current Draw:Max 200 mA

    The AB 1756-IB16D is an essential component for enhancing the functionality of ControlLogix systems, providing robust discrete input capabilities tailored for industrial automation environments.

    Engineered for precision and reliability, this input module supports up to 16 discrete inputs, ensuring efficient data collection from sensors or switches.

    Featuring a wide voltage range of 10-31VDC, the 1756-IB16D offers flexibility in various industrial settings, accommodating diverse power supply conditions.

    With a current sinking capability up to 25mA per channel, it ensures stable operation even under demanding conditions, making it suitable for applications requiring precise signal handling.

    Integrated with RS-485 communication interface, the module seamlessly connects to other ControlLogix devices, facilitating real-time data exchange and control within complex automation networks.

    Operating within an extensive temperature range of -40°C to +70°C, the AB 1756-IB16D ensures reliable performance in harsh industrial environments, enhancing system uptime and productivity.
