Number of Inputs:16

Input Type:Digital

Signal Level:12-bit Resolution

Operating Range:-20V to +20V DC

Operating Temperature:-40°C to +70°C

Power Consumption:≤ 200mA

Communication Interface:RS-485 Modbus RTU

Dimensions:40mm x 230mm x 100mm

Connection Type:Terminal Block

Protection Class:IP30

Operating Voltage:DC 24V

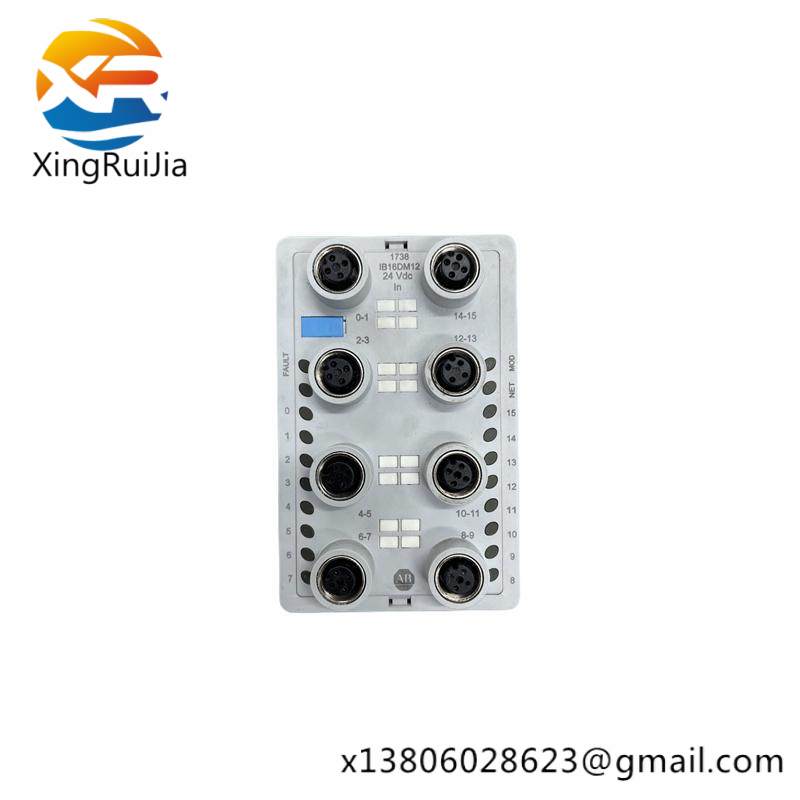

    The ABB AB 1738-IB16DM12 Digital Input Module is engineered for durability and reliability, making it a robust choice for industrial environments. With its compact design and efficient power consumption, this module seamlessly integrates into existing systems without compromising performance.

    Featuring 16 digital inputs, it supports a wide range of signals, enabling precise monitoring and control across diverse applications. The 12-bit resolution ensures accurate data acquisition, crucial for complex process management.

    Operating within an extensive temperature range (-40°C to +70°C), the module is suitable for both cold and hot industrial settings. Its IP30 protection class safeguards against dust ingress and minor water splashes, ensuring continuous operation in challenging environments.

    Equipped with an RS-485 Modbus RTU communication interface, the module facilitates seamless data exchange with other system components. This compatibility enhances system integration and simplifies maintenance and troubleshooting.

    The terminal block connection type provides ease of installation and maintenance, allowing for quick setup and adjustments without disrupting ongoing operations. The low power consumption ensures minimal energy usage, contributing to sustainable industrial practices.
