Input Voltage (AC):230 to 480 Voltage, 3-Phase

Input Frequency (AC):47 to 63 Hertz

Nominal Input Current (AC):11 Amperes (0-peak) Continuous, 22 Amperes (0-peak) Intermittent

Size:9.54 x 14.2 x 5.46 inches (242.2 x 360.7 x 138.7 mm)

Supported Interfaces:RS232, RS485 with DeviceNet

Multi-turn Absolute Encoders:Supplies external logic power and maintains precision

Auxiliary Power Supply:Yes

Internal Shunt Resistance:40 Ohms

Weight:22.96 pounds

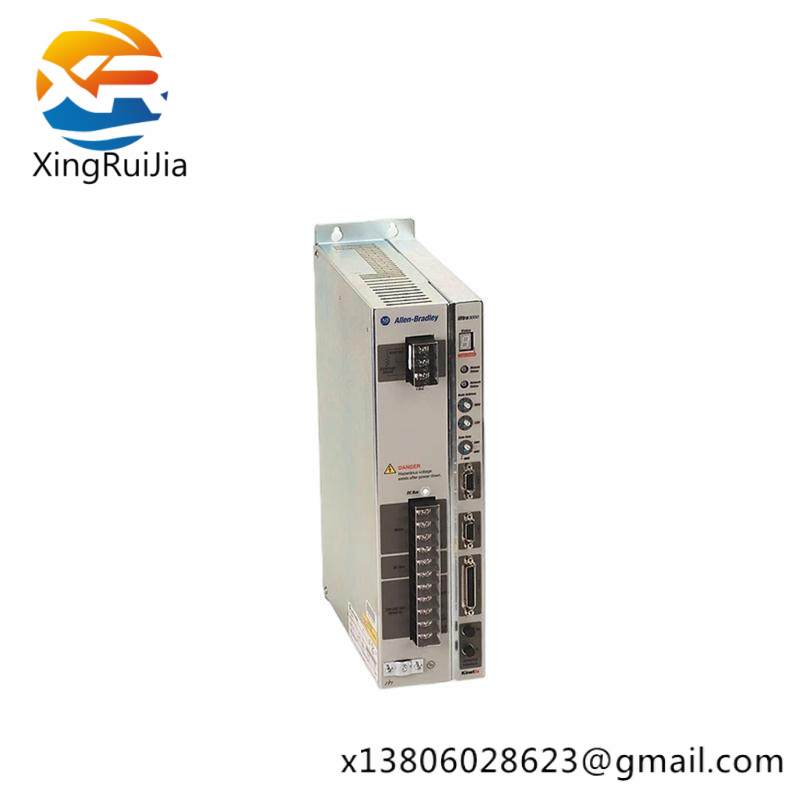

    Engineered for unmatched precision and reliability, the Allen-Bradley AB 2098-DSD-HV150-SE SERCOS Servo Drive offers superior performance in industrial control applications. With its versatile interface capabilities and robust design, it seamlessly integrates with Allen-Bradley’s ControlLogix Programmable Automation Controller (PAC) platform, enhancing system efficiency and productivity.

    Featuring a compact yet durable housing, this servo drive is optimized for space-saving installations in modern industrial settings. Its compatibility with the latest communication protocols ensures seamless data exchange with other components, facilitating advanced control strategies and automation processes.

    The inclusion of a dedicated slot for RS232, RS485, and DeviceNet interfaces provides flexibility in connectivity options. Moreover, support for the SERCOS protocol allows for direct integration with Allen-Bradley’s SOFTLogix controller, enabling sophisticated control mechanisms and enhanced system performance.

    Built with state-of-the-art technology, the AB 2098-DSD-HV150-SE boasts a 22 Amp auxiliary power supply and internal shunt resistance of 40 Ohms. Its weight of 22.96 pounds makes it a lightweight yet powerful choice for a wide range of applications.

    This servo drive is not just about technical specifications; it’s about delivering unmatched performance and reliability. It is meticulously designed to handle demanding industrial environments, ensuring smooth operation and minimal downtime. Whether you’re looking to upgrade existing systems or integrate into new projects, the Allen-Bradley AB 2098-DSD-HV150-SE SERCOS Servo Drive stands out as a reliable partner in your automation journey.
