Manufacturer:Allen-Bradley

Model Number:1794-IB8

Series:CompactLogix

Module Type:Digital Input

Channels:8

Rating:24V DC

Current Load:Up to 500mA per channel

Connection Type:Terminal Block

Operating Temperature:-10°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:106mm x 116mm x 100mm

Weight:0.3kg

Communication Interface:EtherNet/IP

Protocol Support:Modbus TCP/IP

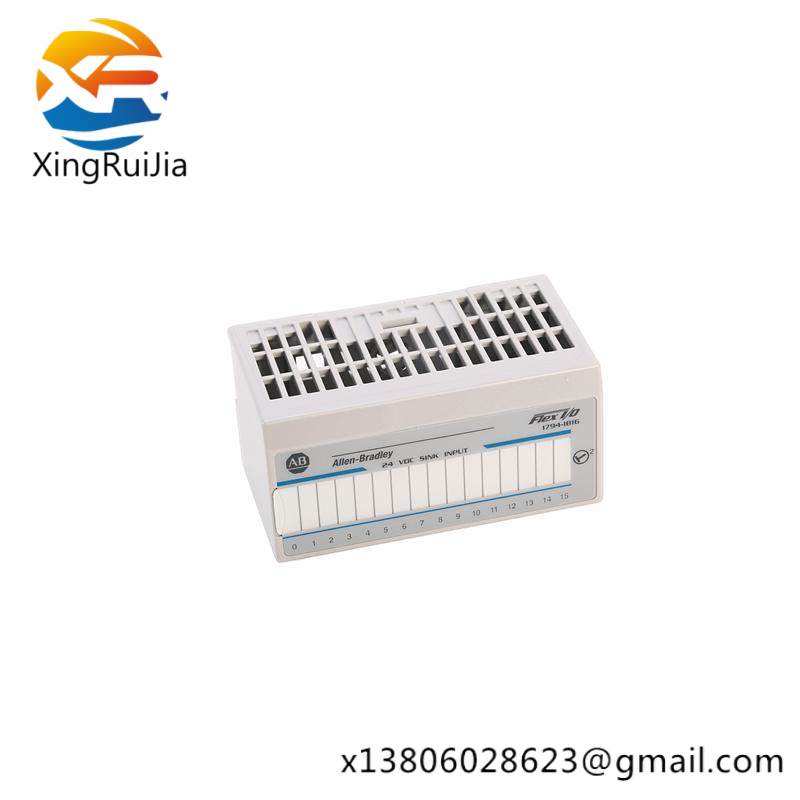

    The Allen-Bradley 1794-IB8 Input Module is engineered to enhance efficiency in industrial control systems. With its robust design, it ensures reliable operation in challenging industrial settings, providing accurate and swift signal acquisition.

    Each of the eight digital input channels is capable of handling a maximum current consumption of 5mA, making it versatile for various applications in manufacturing and process control.

    Featuring an IP20 enclosure rating, this module is protected against dust and splashes, ensuring durability in environments with potential for dust accumulation or moisture.

    Operating within the temperature range of -20°C to +55°C and humidity from 5% to 95% non-condensing, the 1794-IB8 can withstand extreme conditions, maintaining consistent performance throughout its operational life.

    Equipped with RS-485 Modbus RTU communication interface, it seamlessly integrates with existing control networks, enabling easy setup and configuration in diverse industrial automation setups.
