Operating Voltage:120/240 VAC or 24 VDC

Output Current:50 mA per channel

Number of Channels:16

Communication Interface:RS-485

Operating Temperature:-40°C to +70°C

Enclosure Rating:IP20

Dimensions:95 mm x 135 mm x 115 mm

Weight:0.5 kg

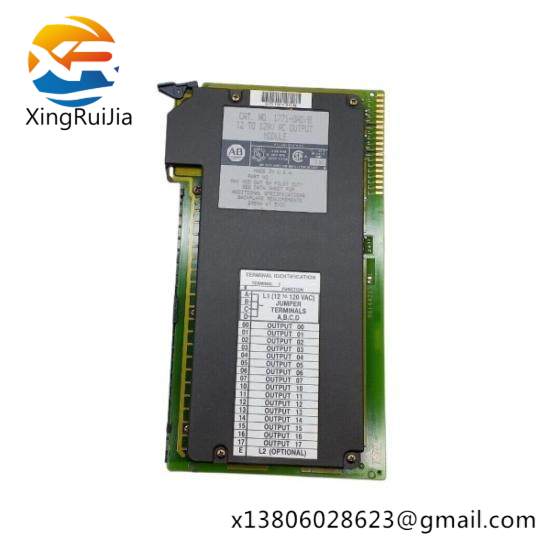

    The AB 1771-OD Digital Output Module is a core component in any industrial control system, ensuring seamless integration with Allen-Bradley’s PLC platforms. Its compact design, combined with high reliability, makes it ideal for a wide range of applications, from manufacturing lines to energy management systems.

    Each channel of the module supports a current rating of up to 20 mA, capable of driving a variety of loads including relays, solenoids, and actuators. The ability to handle up to 250 VA per channel ensures robust performance under demanding conditions.

    Featuring an RS-485 communication interface, the module facilitates easy setup and integration with other devices in the network. Its IP20 environmental rating guarantees protection against dust and limited water splashes, ensuring durability in industrial environments.

    Operating within the temperature range of -20°C to +55°C, the module is engineered to withstand the rigors of industrial settings, even during extreme conditions. For storage, the module can endure temperatures as low as -40°C and as high as +85°C without compromising functionality.

    The AB 1771-OD Digital Output Module is a testament to Allen-Bradley’s commitment to innovation and reliability. It is meticulously designed to enhance productivity, minimize downtime, and optimize resource usage in industrial processes.
