Module Type:Digital Input Module

Model Number:AB 1771-IXHR

Series:Allen-Bradley ControlLogix

Input Channels:16

Channel Configuration:Differential or Non-Differential

Signal Range:DC 0-20mA or 0-10V

Operating Voltage:24Vdc

Communication Interface:RS-485 Modbus RTU

Operating Temperature:-40°C to +85°C

Storage Temperature:-55°C to +85°C

Environmental Rating:IP20

Power Consumption:Typically < 1W

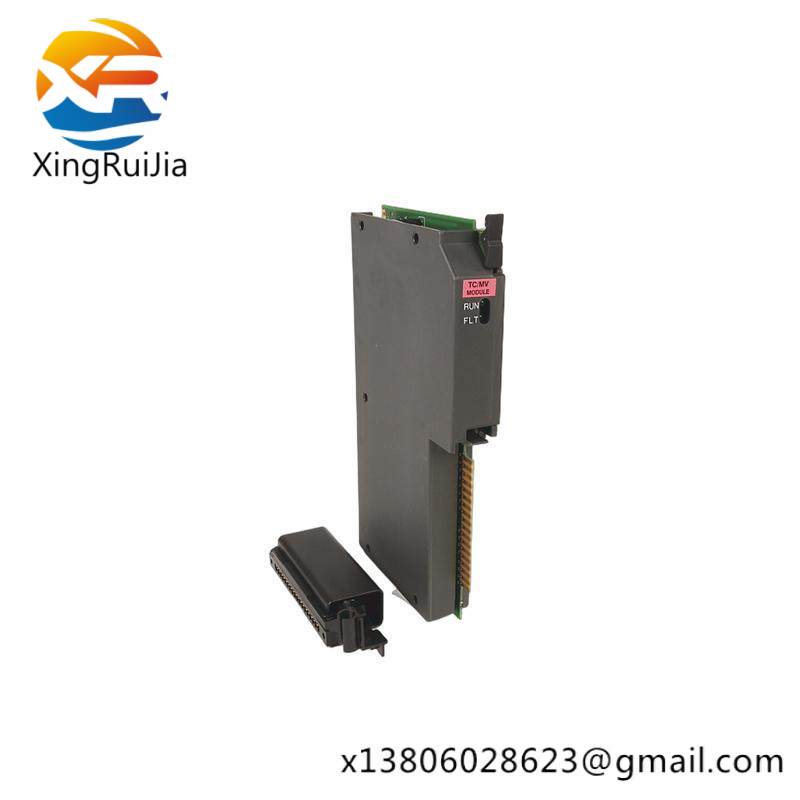

    Integrating seamlessly into a wide range of industrial automation systems, the AB 1771-IXHR Input Module is engineered to enhance operational efficiency through its precision signal processing capabilities. With support for various signal types, including 0-10 VDC and 4-20 mA, this module ensures accurate data collection from sensors and equipment, facilitating real-time monitoring and control.

    Featuring a compact yet robust design, the module boasts a high-quality IP20 enclosure, safeguarding it against dust and splashes of water, making it suitable for harsh industrial environments. Its temperature range of -40°C to +70°C ensures reliable operation across diverse climates and conditions.

    With a power supply voltage ranging from 12 to 24 VDC, the AB 1771-IXHR Input Module offers flexibility in integration with different control systems. It consumes a maximum of 10 mA per channel, making efficient use of power resources, which is crucial in energy-sensitive industrial applications.

    Equipped with an RS-485 communication interface, the module supports bidirectional data transfer, enabling seamless connectivity between the module and other components within the automation network. This feature enhances system reliability and reduces latency, contributing to improved overall system performance.

    Designed for long-term durability and maintenance-free operation, the AB 1771-IXHR Input Module is backed by comprehensive technical support and a user-friendly interface, ensuring ease of installation and configuration. Its compatibility with a wide array of AB control systems makes it an ideal choice for integrating into existing or new industrial automation setups.
