Series:ControlLogix

Module Type:High-speed Counter

Counting Channels:Up to 16 channels

Maximum Counting Rate:Up to 65,535 counts per second

Resolution:Counts ranging from 1 to 65,535

Power Consumption:Typically less than 5 watts

Communication Interface:ControlNet

Operating Temperature:-20°C to +60°C

Enclosure Type:IP20

Mounting Style:Panel

Environmental Standards:IEC 61131-2

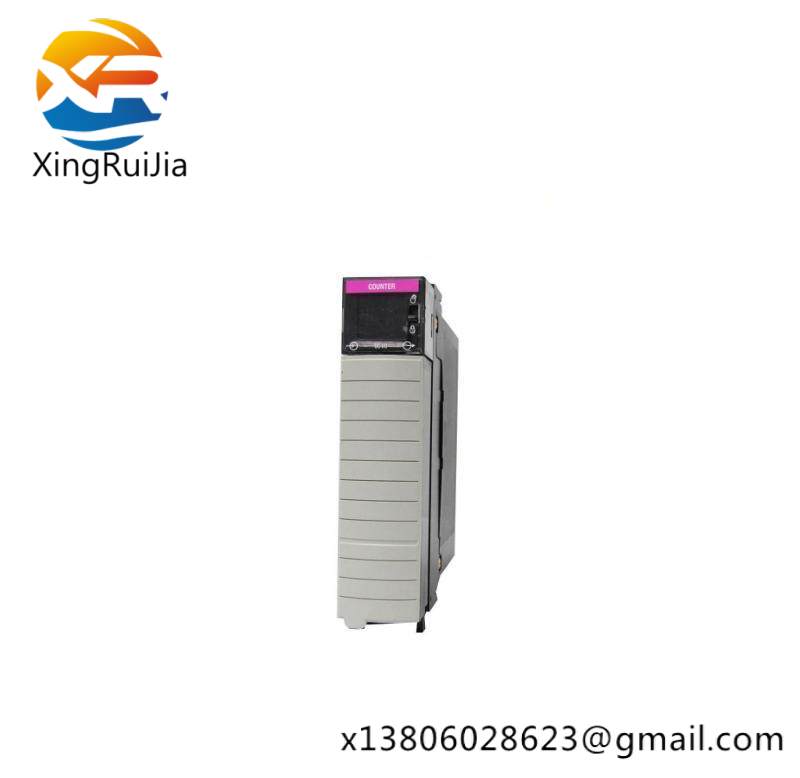

    The Allen Bradley 1756-HSC ControlLogix High-speed Counter Module is engineered to meet the stringent requirements of industrial automation environments. Its robust design ensures reliable performance in challenging conditions.

    Featuring up to 16 counting channels, this module provides versatility for various applications, from simple timing tasks to complex process control scenarios.

    With a maximum counting rate of 65,535 counts per second and resolution down to a single count, it offers unparalleled precision, making it ideal for applications where accuracy is paramount.

    The inclusion of a ControlNet interface allows seamless integration within a larger ControlLogix system, enhancing overall system efficiency and flexibility.

    Operational in a wide temperature range (-20°C to +60°C) and housed in an IP20 enclosure, this module is designed for durability and reliability in industrial settings.

    Easy installation on the panel with its compact size and compatible mounting style, this module is a cost-effective solution for improving productivity and efficiency in your manufacturing process.
