Model Type:Discrete Output Module

Manufacturer:Allen Bradley

Module Type:SLC 500 Series

Number of Channels:16

Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 Volts DC

Sink Outputs:16

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

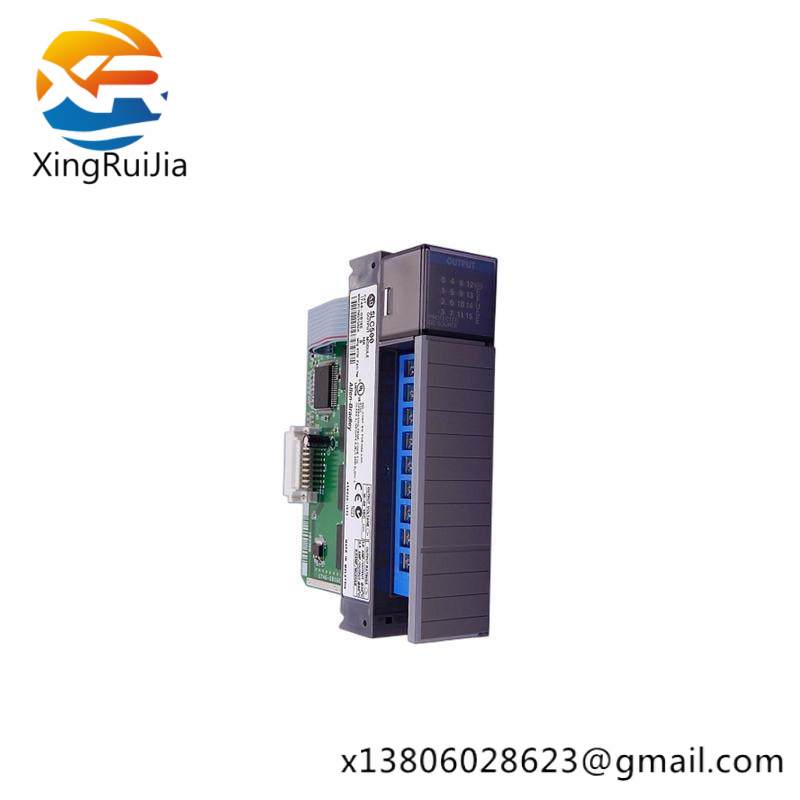

    The Allen Bradley 1746-OB16E Output Module boasts a robust design suitable for a wide range of industrial environments. Its precision-engineered sink outputs enable seamless integration into complex control systems.

    With a temperature rating of 0-60°C and a humidity tolerance of 5%-95%, this module is built to withstand harsh conditions without compromising performance.

    Featuring a low on-state voltage drop and minimal off-state leakage, it ensures efficient power usage and maintains system reliability under various operational loads.

    The Allen Bradley 1746-OB16E supports both communication circuits and backplane with isolation ratings of 500VDC and 1500VAC, respectively, ensuring reliable data transmission and protecting against electrical interference.

    Designed with ease-of-use in mind, this module simplifies installation and maintenance processes, reducing downtime and enhancing operational efficiency in manufacturing and automation industries.
