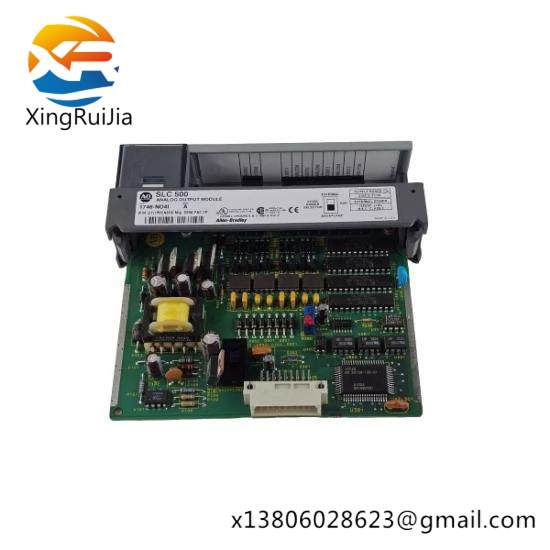

Model:1746-NO4I

Manufacturer:Allen Bradley

Type:Output Module

Series:SLC 500

Channels:4

Output Type:Digital DC

Output Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA per channel

Continuous Current per Output:0.25 A at 60°C

Continuous Current per Module:8 A at 60°C

Isolation:Communication circuits: 500 VDC; Backplane: 1500 VAC

Environmental Conditions:Operating temperature: 0 – 60°C; Storage temperature: -40 – 85°C

Enclosure Type:Open type

Mounting:Chassis mount

Power Rating:Backplane: 190 mA at 5 VDC, 85 mA at 24 VDC

Input Protection:Overvoltage protection: 7.5 VAC RMS

Common Mode Voltage Range:-10 VDC to +10 VDC

    Engineered with precision, the AB 1746-NO4I Output Module – SLC 500 Analog is a critical component for enhancing efficiency in industrial automation processes. It provides unparalleled reliability and accuracy in managing digital outputs, ensuring smooth operation across various industrial settings.

    Designed with robust materials and advanced technology, this module is built to withstand harsh environments typical in manufacturing and production lines. Its durability and longevity make it a preferred choice among engineers and maintenance personnel.

    Ease of integration is one of its standout features, making it compatible with a wide range of PLC systems. This ensures seamless connection to existing industrial control networks without compromising performance.

    This module is not only a testament to Allen-Bradley’s commitment to quality but also offers a solution for complex control scenarios, providing users with a versatile tool for their automation needs.

    Equipped with state-of-the-art features, the AB 1746-NO4I Output Module – SLC 500 Analog is designed to simplify the process of managing digital outputs, enhancing productivity and reducing downtime in industrial operations.
