Number of Channels:4

Input Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max)

Output Range:-10 to 10 V – 1 LSB

Full Scale:10 VDC

Overvoltage Protection:7.5 VAC RMS

Backplane Current Draw:35 mA at 5 V, 85 mA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

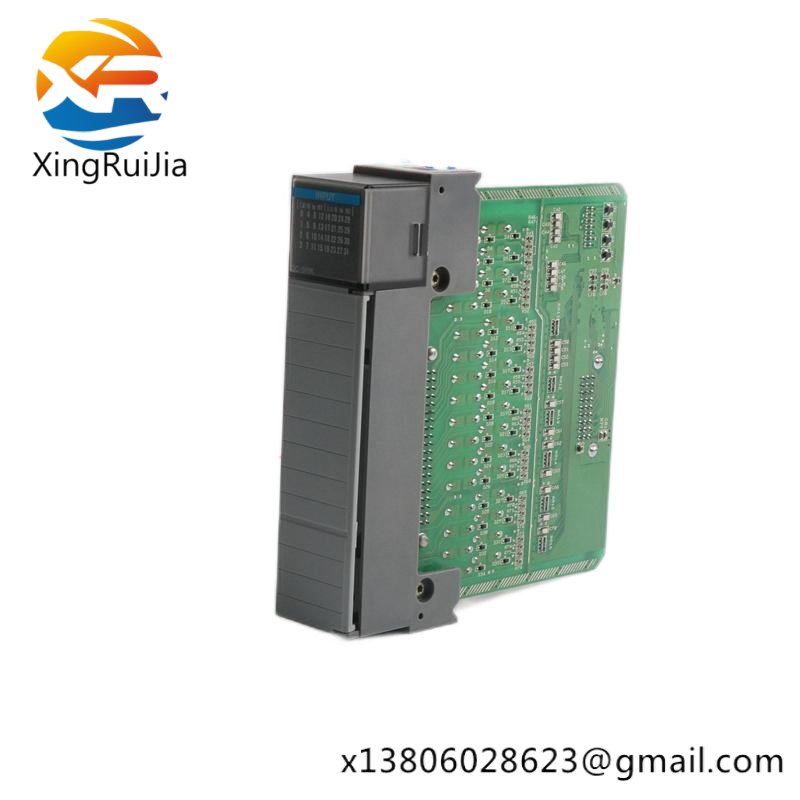

    The AB 1746-NI4/B modules boast high-resolution accuracy, ensuring reliable signal conversion in demanding industrial environments. They offer unmatched versatility with 4 input and 4 output channels, supporting a wide range of analog signals.

    These modules are engineered with robust isolation and overvoltage protection, safeguarding against electrical disturbances and prolonging equipment lifespan.

    Featuring Allen Bradley’s advanced technology, these modules integrate seamlessly with existing automation systems, providing an upgrade path for enhanced functionality.

    Designed for efficiency, the AB 1746-NI4/B modules are lightweight yet durable, minimizing space requirements and reducing installation costs without compromising performance.

    Ideal for applications requiring precise control over environmental conditions, process monitoring, and safety systems, these modules empower engineers to optimize production processes and improve operational efficiency.
