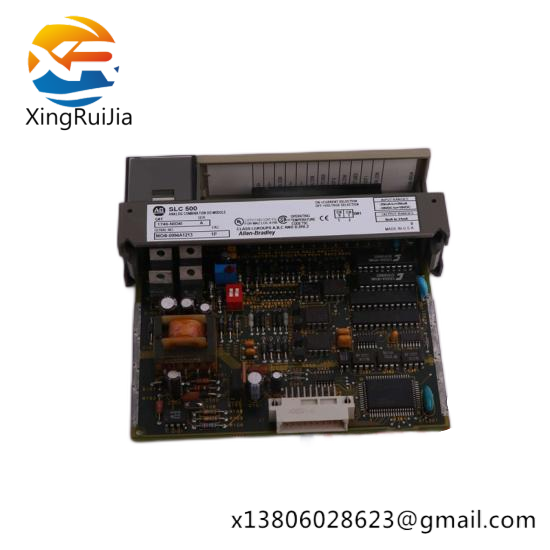

Model Type:SLC500

Manufacturer:Allen-Bradley

Model Number:1746-NI14

Number Of Channels:14

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    Designed for seamless integration into Allen-Bradley PLC systems, the 1746-NI4 module offers unparalleled reliability and accuracy.

    Each channel supports high-resolution measurements, ensuring precise data acquisition in demanding industrial environments.

    With its robust isolation capabilities, the module effectively protects against electrical noise, enhancing system stability.

    The versatile communication protocols support diverse network configurations, enabling seamless data exchange with other devices.

    Ideal for applications requiring precise analog signal conversion and monitoring, this module is a critical component for modern industrial control systems.
