Operating Frequency:Up to 50 kHz

Counting Capacity:Up to 65,535 counts

Input Current:Max 25 mA per channel

Output Current:Max 25 mA per channel

Operating Voltage:DC 24 V

Environmental Conditions:Operating temperature: -10°C to 60°C, Storage temperature: -20°C to 80°C

Dimensions:67 mm x 117 mm x 127 mm

Weight:Approx. 0.22 kg

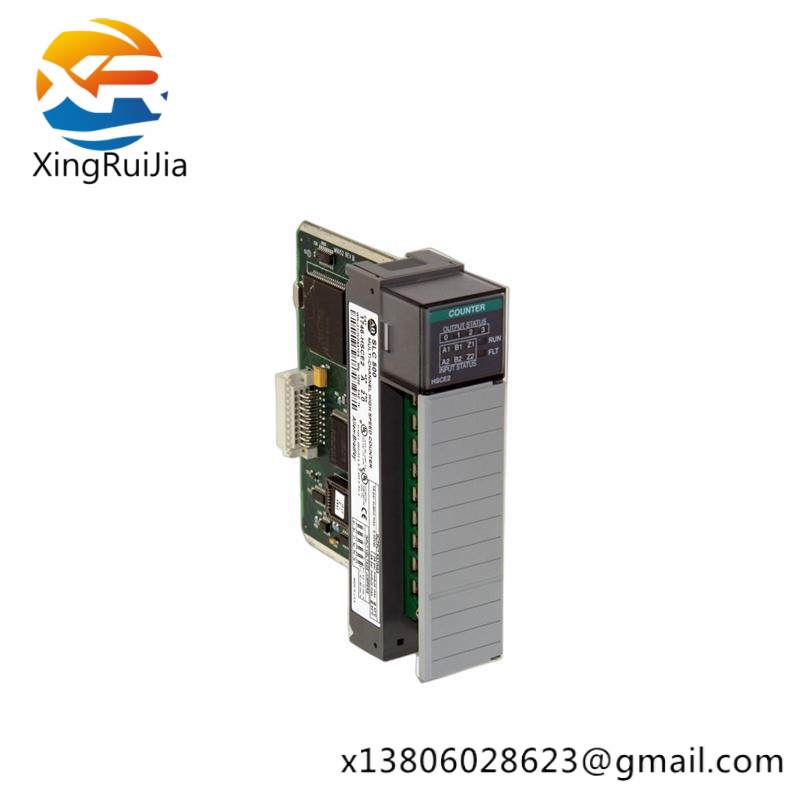

    Engineered for high-speed industrial applications, the Allen Bradley AB 1746-HSCE2 High Speed Counter Module excels in delivering precise timing measurements, essential for demanding processes such as machinery control, process monitoring, and robotic systems.

    Featuring an exceptionally fast counting rate of up to 100 million counts per second, this module ensures minimal latency in high-frequency events, making it ideal for applications where timing accuracy is critical.

    With a counting resolution of 0.1 μs, users can achieve unparalleled precision in their timing measurements, ensuring that every event is captured accurately, even in the most dynamic environments.

    The module supports digital inputs for easy integration with various sensors and devices, providing a versatile solution for a wide range of industrial applications. It also offers discrete outputs for controlling actuators or initiating actions based on the counted events.

    Built for durability and reliability, the Allen Bradley AB 1746-HSCE2 operates within a broad temperature range (-40°C to +70°C), ensuring stable performance in harsh industrial conditions. Its compact size and lightweight design facilitate seamless installation and maintenance.

    Compliant with EtherNet/IP standards, the module seamlessly integrates with Allen Bradley’s ControlLogix and CompactLogix PLC platforms, enabling advanced network connectivity and data exchange within the factory floor.
