Input Voltage Range:300V to 500V DC

Output Current:Up to 100A

Switching Frequency:Up to 20kHz

Protection Features:Overvoltage, undervoltage, overcurrent protection

Operating Temperature Range:-40°C to +85°C

Dimensions (WxHxD):100mm x 80mm x 30mm

Weight:0.5kg

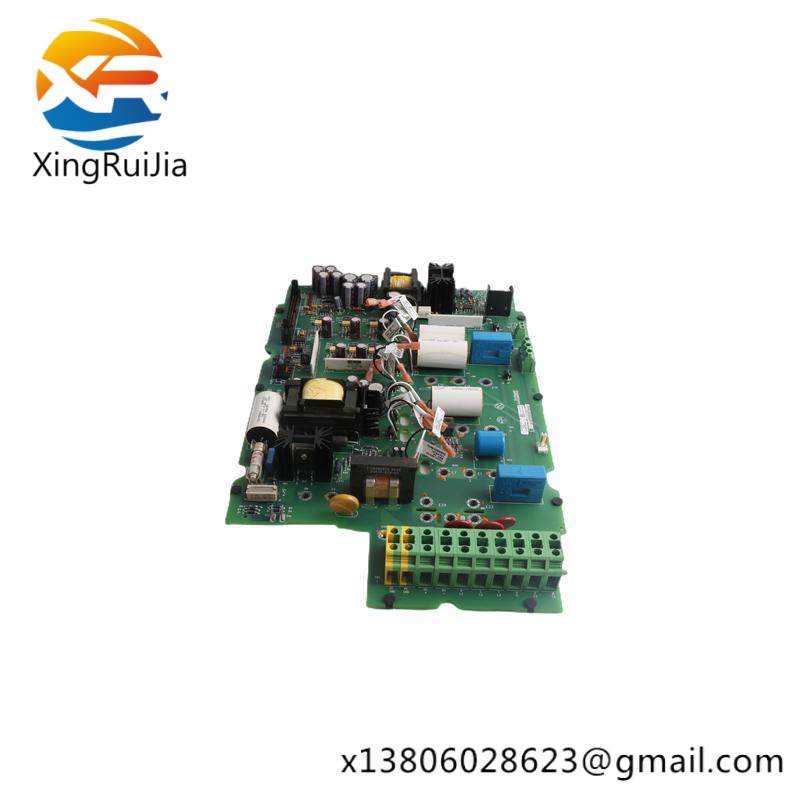

    The AB 1336-BDB-SP5D GATE DRIVE is meticulously engineered to provide superior performance in industrial control systems. Its robust design ensures reliable operation under demanding conditions, making it suitable for various applications from semiconductor driving to complex control scenarios.

    With its wide input voltage range and high switching frequency capabilities, this module optimizes energy consumption and system response time. The inclusion of comprehensive protection features safeguards against common electrical faults, enhancing system uptime and reducing maintenance costs.

    Crafted from premium materials, the AB 1336-BDB-SP5D GATE DRIVE boasts excellent thermal conductivity and mechanical durability, ensuring a long lifespan even in harsh environments. Its compact size facilitates easy integration into existing systems without compromising on functionality.

    Designed with user-friendliness in mind, the module features intuitive setup and operation through its accessible interface and straightforward configuration options. This minimizes installation time and reduces the learning curve for new users, streamlining the integration process for system designers and engineers.

    Experience the difference with the AB 1336-BDB-SP5D GATE DRIVE – a testament to innovation and reliability in industrial automation. Whether you’re looking to upgrade existing systems or design new ones, this module delivers the performance, efficiency, and durability you need to drive your operations forward.
