Brand:A-B (Allen-Bradley)

Model:1771-IFMS

Module Type:Input Module

Series:ControlLogix

Input Channels:16 Channels

Input Types:Voltage, Current, Thermocouple, RTD

Voltage Range:0-10V DC

Current Range:4-20mA

Temperature Range:-200°C to +850°C

Resolution:16-bit

Sampling Rate:Up to 1 MHz

Operating Voltage:24V DC

Operating Temperature:-40°C to +85°C

Environmental Rating:NEMA 4X/IP67

Weight:0.5 kg

Dimensions:100mm x 60mm x 30mm

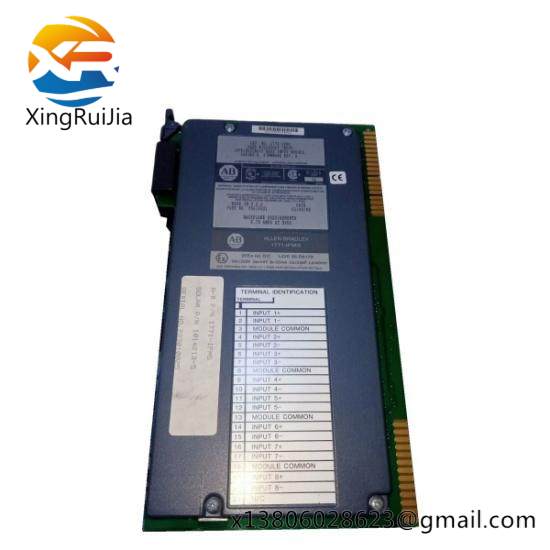

    The A-B 1771-IFMS Analog Input Module is an essential component for any industrial automation system requiring precise measurement of analog signals. This module offers 8 channels of input, supporting a wide range of voltage inputs, including ±10V, ±5V, 0-10V, and 0-5V. With a resolution of 16 bits, it ensures highly accurate data acquisition. Designed for harsh industrial environments, it operates reliably from -40°C to +85°C, making it suitable for a variety of settings. Its compact size (76.2 mm x 91.4 mm x 76.2 mm) and lightweight design (approximately 1.5 kg) make installation straightforward and space-saving. Additionally, it is powered by a 24V DC supply, which is standard in many industrial settings. The high sampling rate of up to 1 MHz allows for real-time monitoring and quick response times, enhancing overall system performance.
