Brand:Allen-Bradley

Model:1746-IV16

Input Channels:16

Input Type:DC

Voltage Range:10 – 30 VDC

Off-State Voltage:3 VDC

Nominal Current:8 mA at 24 VDC

Off-State Current:1 mA

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

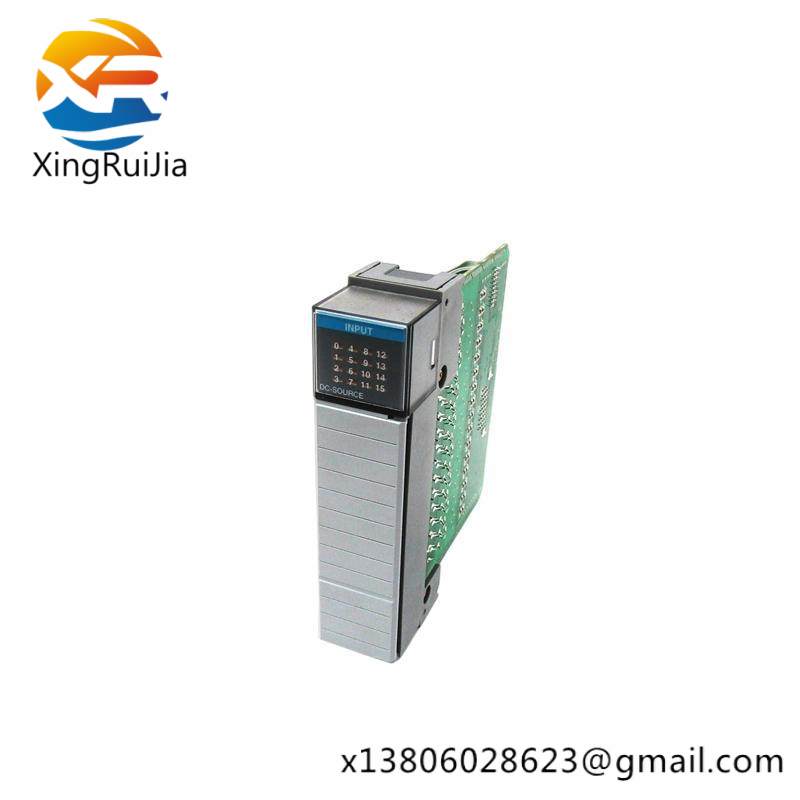

    The Allen-Bradley 1746-IV16 DC Input Module is an essential component for any industrial control system. It features sixteen channels designed to receive digital input signals, making it ideal for monitoring various process parameters in real-time. With its robust design, this module can handle up to 24 VDC inputs and is capable of handling off-state input voltages down to 3 VDC, ensuring reliable operation even in demanding environments. The module is designed to operate within a temperature range of 0 – 60 DEG C, making it suitable for a wide range of industrial settings. Its open-type enclosure and chassis mounting options make installation straightforward and flexible. Additionally, the module offers high isolation ratings for communication circuits and backplane connections, ensuring secure and stable performance. Whether you are upgrading an existing control system or building a new one, the Allen-Bradley 1746-IV16 DC Input Module provides the reliability and precision you need to ensure efficient and accurate process control.
